GB/T1952 Marine Bronze Male Threaded Check Valve Type A
Materials of main parts
Body Material: Cast Tin Bronze
Disc Material: Cast Tin Bronze
Cover Material: Cast Tin Bronz
Overview
Application: This GB/T1952 Marine Bronze Male Threaded Check Valve Type A is designed for marine applications involving air, fresh water, lubricant oil, fuel oil, t≤250°C steam.
Material Specification:
Parts Name | Material | |
|---|---|---|
Name | Marks | |
Body | Cast tin bronze | ZCuSn10Zn2 |
Cover | Cast tin bronze | ZCuSn10Zn2 |
Disc | Cast tin bronze | ZCuSn10Zn2 |
Technical Specifications:
Model: GB/T1952 Marine Bronze Male Threaded Check Valve Type A
Type | Name | Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Applicable Medium Available medium |
|---|---|---|---|---|
A | Straight Check Valve | 1.6 | 15 ~ 32 | Sea water, Fresh water, Air, Lubricant oil, Fuel oil, steam of 250 °C and under |

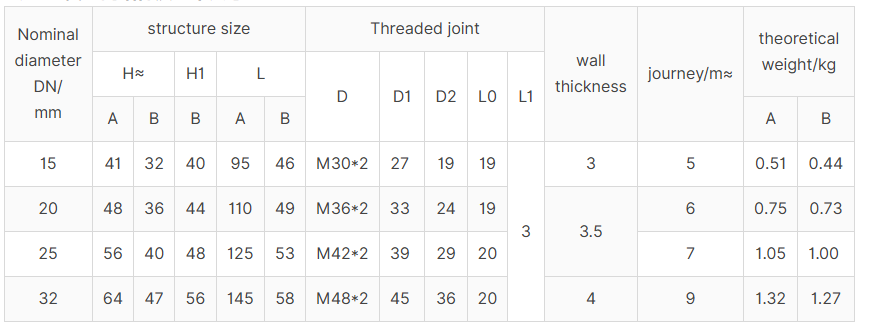

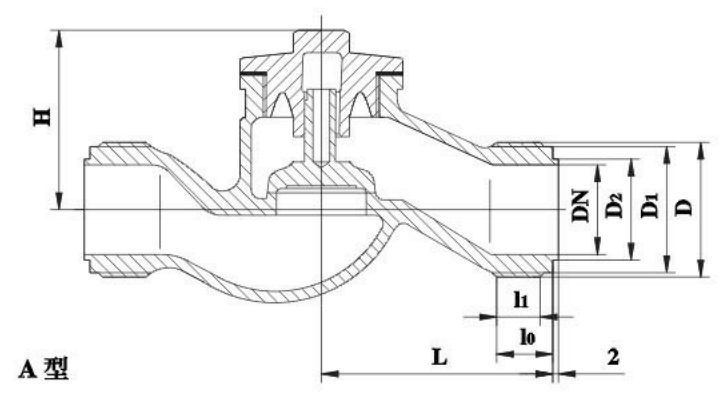

Dimensions(mm):
