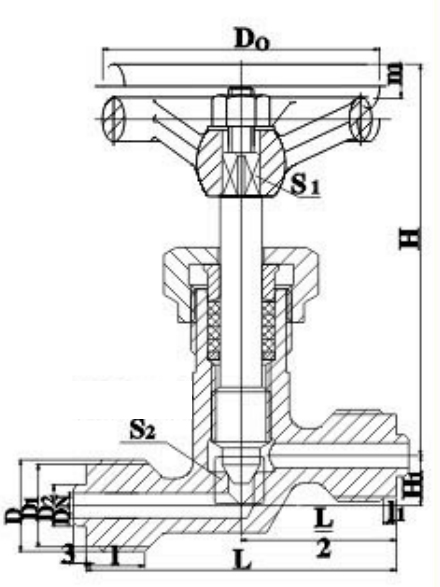

GB T/594 Male Threaded Forged Steel Stop Valve Type A
Materials of main parts
Body Material: Stainless steel
Disc Material: Stainless steel
Stem Material: Stainless steel
Overview
Application: This GB T/594 Male Threaded Forged Steel Stop Valve Type A is designed for marine applications involving air, fresh water, lubricant oil, fuel oil, t≤400°C steam.
Material Specification:
Parts Name | Material | |
|---|---|---|
Name | Marks | |
Body | Stainless steel | DN10 ~ 6: 2Cr13 |
Carbon steel | DN25 ~ 32: Q235A | |
Cover | Carbon steel | Q235A |
Disc Stem | Stainless steel | 2Cr13 |
Technical Specifications:
Model: GB T/594 Male Threaded Forged Steel Stop Valve Type A
Nominal Pressure(Mpa): PN4.0
Nominal Diameter(mm): DN15~DN32
Type | Name | Applicable Medium Available medium |
|---|---|---|
A | Straight Globe Valve | Fresh water, Air, Lubricant oil, Fuel oil, steam of 400 °C and under |
DN6.0 ~ 10.0 Elementary Dimensions (mm)
Nominal Pressure PN (MPa) | Nominal Diameter DN | Frame dimension | Thread joint | Wrench Size S2 | hand wheel | Lift Range m | Weight kg | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | L | H ≈ | H1 | D | D1 | D2 | l | h | S2 | Do | S1 | |||
10.0 | 6 | 74 | 90 | 12 | M22 x 1.5 | 19.8 | 10 | 14 | 3 | 24 | 65 | 7 | 5 | 0.49 |
10 | 94 | 109 | 16 | M27 x 1.5 | 24.8 | 14 | 16 | 30 | 80 | 8 | 7 | 0.89 | ||
