GB T/593 Marine Flanged Bronze Packed Cock
Materials of main parts
Body Material: Cast Tin Bronze
Disc Material: Cast Tin Bronze
Overview
Application: This GB T/593 Marine Flanged Bronze Packed Cock is designed for marine applications involving fresh water, lubricant oil, fuel oil.
Material Specification:
Parts Name | Material | |
|---|---|---|
Name | Marks | |
Bronze cock main body | Cast tin bronze | ZCuSn10Zn2 or ZCuSn5Pb5Zn5 |
Cast iron cock main body | Cast iron | HT200 |
Disc | Cast tin bronze | ZCuSn10Zn2 or ZCuSn5Pb5Zn5 |
Technical Specifications:
Model: GB T/593 Marine Flanged Bronze Packed Cock
Nominal Pressure(Mpa): PN0.6
Nominal Diameter(mm): DN20~DN80
Pattern | Name | Nominal Pressure PN MPa | Nominal Diameter DN mm | Available Medium |
|---|---|---|---|---|
A, AS | Straight-through packed cock | 0.6 | 20 ~ 80 | Sea water, fresh water, lubricant, fuel oil |
L, LS | L-pattern three-way packed cock | 0.6 | 20 ~ 80 | Sea water, fresh water, lubricant, fuel oil |
T, TS | T-pattern three-way packed cock | 0.6 | 20 ~ 80 | Sea water, fresh water, lubricant, fuel oil |
Dimensions

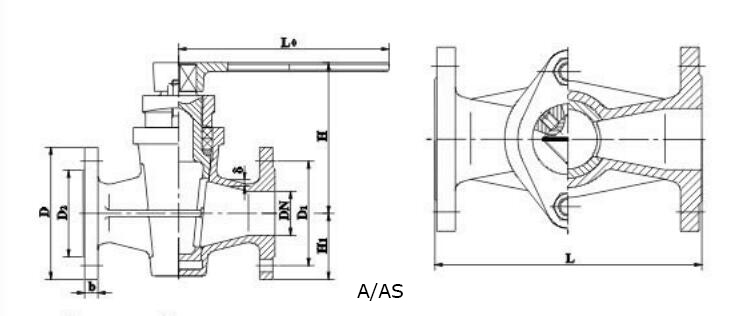

Type A & Type B
DN (mm) | Structure dimension | Thickness | flange | bolt | Handle L0 | Weight(kg) | |||||||||
L | H | H1 | D | D1 | D2 | d0 | b | n | Th. | A | L | T | |||
20 | 145 | 139 | 40 | 4 | 95 | 68 | 48 | 13 | 12 | 4 | M12 | 125 | 3.0 | 3.5 | 3.4 |
25 | 155 | 149 | 41 | 4 | 105 | 73 | 56 | 13 | 13 | 4 | M12 | 140 | 3.7 | 4.2 | 4.1 |
32 | 165 | 168 | 48 | 5 | 115 | 83 | 64 | 15 | 13 | 6 | M14 | 160 | 4.6 | 5.3 | 5.2 |
40 | 190 | 192 | 56 | 5 | 125 | 93 | 74 | 15 | 14 | 6 | M14 | 180 | 6.9 | 8.6 | 8.5 |
50 | 205 | 243 | 65 | 5 | 135 | 103 | 84 | 15 | 14 | 6 | M14 | 230 | 9.7 | 11.4 | 11.3 |
65 | 225 | 285 | 80 | 6 | 155 | 123 | 104 | 15 | 14 | 6 | M14 | 250 | 12.4 | 15.6 | 15.4 |
80 | 245 | 324 | 96 | 6 | 170 | 138 | 118 | 15 | 14 | 6 | M14 | 320 | 18.8 | 21.6 | 21.2 |
Type AS, LS, TS

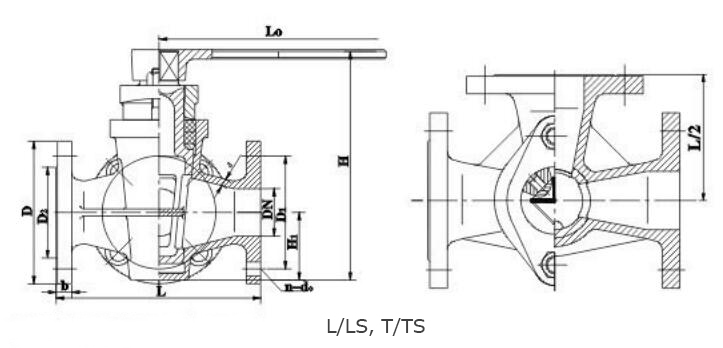

AS | LS | TS | |||||||||||||
20 | 150 | 139 | 40 | 4 | 90 | 65 | 50 | 11 | 12 | 4 | M10 | 125 | 3.0 | 3.5 | 3.4 |
25 | 160 | 149 | 41 | 4 | 100 | 75 | 60 | 11 | 14 | 4 | M10 | 140 | 3.7 | 4.2 | 4.1 |
32 | 180 | 168 | 48 | 5 | 120 | 90 | 70 | 14 | 15 | 4 | M12 | 160 | 5.0 | 5.9 | 5.8 |
40 | 200 | 192 | 56 | 5 | 130 | 100 | 80 | 14 | 16 | 4 | M12 | 180 | 7.5 | 9.4 | 9.3 |
50 | 230 | 243 | 65 | 5 | 140 | 110 | 90 | 14 | 17 | 4 | M12 | 230 | 10.7 | 12.6 | 12.5 |
65 | 290 | 285 | 80 | 6 | 160 | 130 | 110 | 14 | 17 | 4 | M12 | 250 | 13.6 | 17.1 | 16.9 |
80 | 310 | 324 | 96 | 6 | 190 | 150 | 128 | 18 | 19 | 4 | M16 | 320 | 20.3 | 23.6 | 23.3 |
