GB T/590 Marine Cast Iron Stop Valve Type B/BS

GB T/590 Marine Cast Iron Stop Valve Type B/BS


Materials of main parts

Body Material: Cast Iron

Disc Material: Cast Tin Bronze

Stem Material: Cast Alumium Bronze





Overview

Application: This GB T/590 Marine Cast Iron Stop Valve Type B/BS is designed for marine applications involving fresh water, lubricant oil, fuel oil, t≤220℃.

Material Specification:

Parts Name

Material



Name

Marks

Body, Cover

Cast iron

HT200

Disc

Cast tin bronze

ZCuSn10Zn2

Stem

Cast aluminum bronze

ZCuAl9Mn2

Seat

Aluminum bronze

CuAl9Mn2

Technical Specifications:

  • Model: GB T/590 Marine Cast Iron Stop Valve Type B/BS

  • Nominal Pressure(Mpa):  Type B: PN1.0~PN1.6  Type BS: PN0.6~PN1.6

  • Nominal Diameter(mm): Type B: DN20~DN150 Type BS: DN20~DN300

Type

Nominal Pressure PN (MPa)

Nominal Diameter DN (mm)

Available Medium

B

1.0

65 ~ 150

Sea water, Fresh water, Lubricant oil, Fuel oil, t≤220℃.

1.6

20 ~ 50

BS

0.6

50 ~ 300

1.0

65 ~ 250

1.6

20 ~ 50

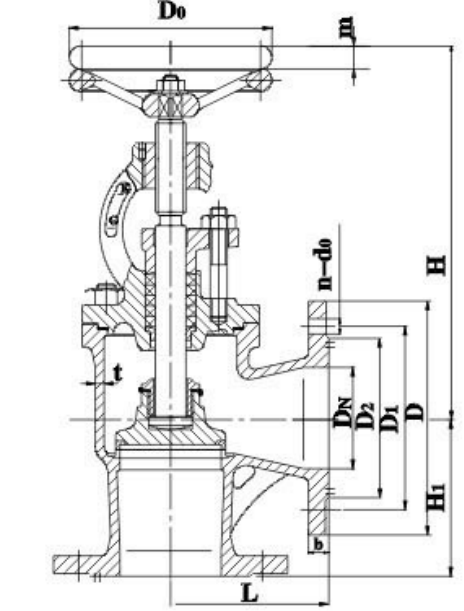

Fundamental dimensions for Marine Cast Iron Flanged Stop valve GB/T590:


Chart1 Fundamental dimensions of type B:

PN

DN

Construction dimensions








L


H

H1

Thickness


Flange


Bolt


Hand wheel

Lift

Range

Weight(kg)

(MPa)

(mm)

B

B

B

6

D

D1

D2

do

b

n

Th

Do

S

m

B

1.0

65

115

277

1 15

9

155

123

104

15

15

6

M14

140

12

18

16.7

80

125

304

125

9

170

138

118

15

15

8

M14

160

14

24

19.9

100

150

325

135

10

190

158

138

15

15

8

M14

180

14

35

27.2

125

175

366

155

10

215

183

164

15

15

10

M14

200

17

44

37.5

150

180

410

160

11

240

208

190

15

16

12

M14

200

17

57

48.4

 1.6

20

75

203

75

7

95

68

48

13

14

4

M12

80

8

7

5.1

25

80

203

80

7

105

73

56

13

14

4

M12

80

8

7

5.6

32

85

216

85

7

1 15

83

64

15

15

6

M14

100

9

9

6.9

40

90

236

90

8

125

93

74

15

16

6

M14

120

1 1

11

8.5

50

95

258

95

8

135

103

84

15

16

6

M14

140

12

14

11.3


Chart2 Fundamental dimensions of type BS:

PN

DN

Construction dimensions








L


H


H1


Thickness


Flange


Bolt


Hand wheel

Lift

Range

Weight(kg)

(MPa)

(mm)

BS

BS

BS

6

D

D1

D2

do

b

n

Th

Do

S

m

BS

0.6

50

125

258

125

8

140

1 10

90

14

16

4

M12

140

12

14

12.2

65

145

277

145

9

160

130

1 10

14

16

4

M12

140

12

18

17.7

80

155

304

155

9

190

150

128

18

18

4

M16

160

14

24

21.7

100

175

325

175

10

210

170

148

18

18

4

M16

180

14

35

32.3

125

200

366

200

10

240

200

178

18

20

8

M16

200

17

44

42.8

150

225

410

225

11

265

225

202

18

20

8

M16

200

17

57

55.8

175

225

489

225

11

295

255

232

18

22

8

M16

200

17

60

70.3

200

275

549

275

11

320

280

258

18

22

8

M16

280

24

68

95.6

250

325

623

325

13

375

335

312

18

24

12

M16

360

27

80

151.0

300

375

691

375

13

440

395

365

22

24

12

M20

450

32

100

207.0

1.0

65

145

277

145

9

185

145

122

18

20

4

M16

140

12

18

20.1

80

155

304

155

9

200

160

133

18

22

8

M16

160

14

24

23.9

100

175

325

175

10

220

180

158

18

24

8

M16

180

14

35

32.8

125

200

366

200

10

250

210

184

18

26

8

M16

200

17

44

44.6

150

225

410

225

11

285

240

212

22

26

8

M20

200

17

57

59.8

175

225

489

225

11

315

270

242

22

28

8

M20

280

24

60

73.8

200

275

543

275

11

340

295

268

22

28

8

M20

360

27

68

99.6

250

325

623

325

13

395

350

320

22

28

12

M20

450

32

80

153.0

1.6

20

95

203

95

7

105

75

58

14

16

4

M12

80

8

7

5.7

25

100

203

100

7

1 15

85

68

14

16

4

M12

80

8

7

6.4

32

105

216

105

7

140

100

78

18

18

4

M16

100

9

9

8.7

40

115

236

1 15

8

150

1 10

88

18

18

4

M16

120

1 1

1 1

10.7

50

125

258

125

8

165

125

102

18

20

4

M16

140

12

14

14.2
