GB/T 2030 Marine Bronze Suction Sea Valve
Materials of main parts
Body Material: Cast Tin Bronze
Disc Material: Cast Tin Bronze
Stem Material: Aluminum Bronze
Overview
Application: This GB/T 2030 Marine Bronze Suction Sea Valve is designed for marine applications involving sea water.
Material Specification:
Parts Name | Material | |
|---|---|---|
Name | Marks | |
Body 、Cover | Cast tin bronze | ZCuSn10Zn2 |
Disc Seat | Cast tin bronze | ZCuSn10Zn2 |
Stem | Aluminum bronze | QA19-2 |
Technical Specifications:
Model: GB/T 2030 Marine Bronze Suction Sea Valve
Nominal Pressure PN MPa | Nominal Diameter DN mm | Suitable Media |
|---|---|---|
0.4 | 80 ~ 400 | Sea water |

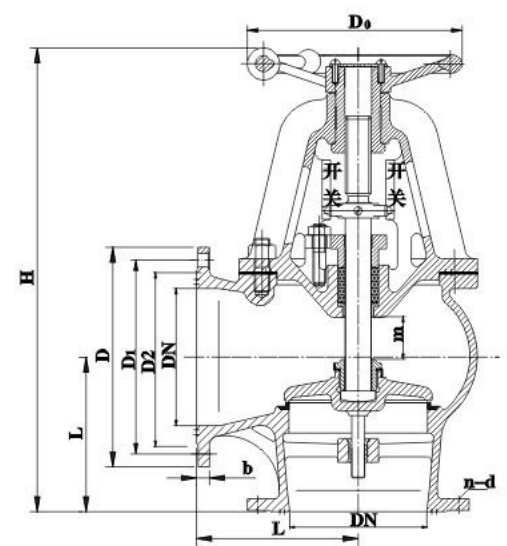

Drawing:

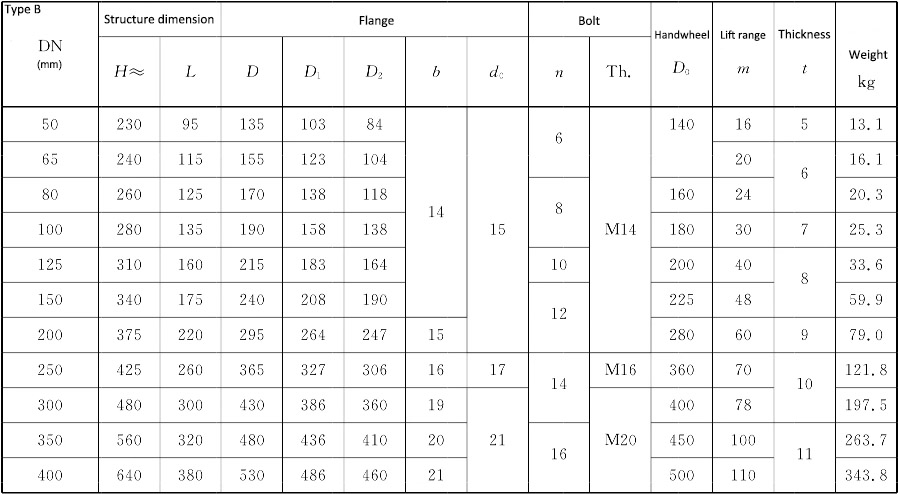

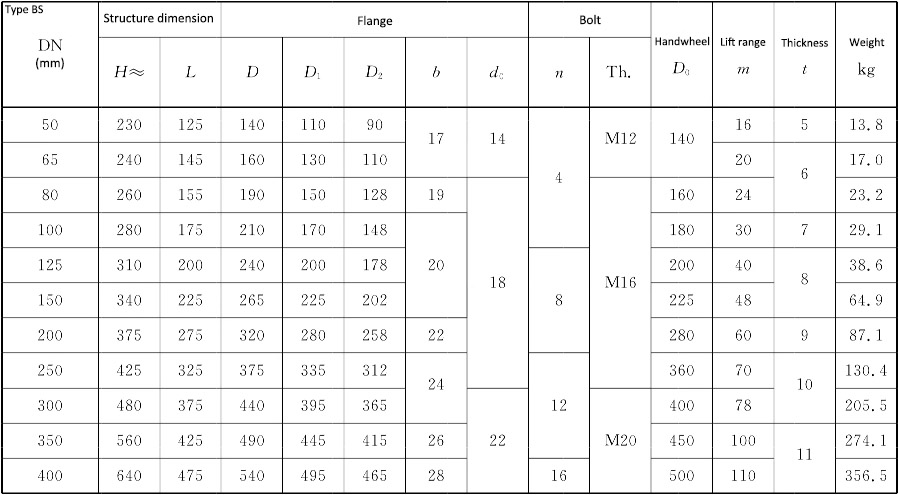

Dimensions(Unit:mm)
