Flange Type Deck Scupper
Flange Type Deck Scupper is a marine drainage fitting designed with a flanged connection for collecting and discharging rainwater, seawater, and other liquids from ship decks.
The flange connection allows the scupper to be securely installed on ship decks and connected with drainage pipelines through bolts and gaskets, providing reliable sealing performance and convenient maintenance.
Flange Type Deck Scupper is commonly installed in:
Main deck drainage systems
Weather decks
Cargo decks
Superstructures
Offshore platforms
Marine engineering structures
Overview
Working Principle of Flange Type Deck Scupper
Flange Type Deck Scupper works as a connection point between the ship deck drainage area and the drainage pipeline system.
Operating Process:
Rainwater or seawater accumulates on the deck surface.
Water enters through the scupper inlet.
The scupper body guides water into the connected drainage pipe.
The flange connection transfers water safely through the pipeline system.
Water is discharged overboard or into the vessel drainage system.

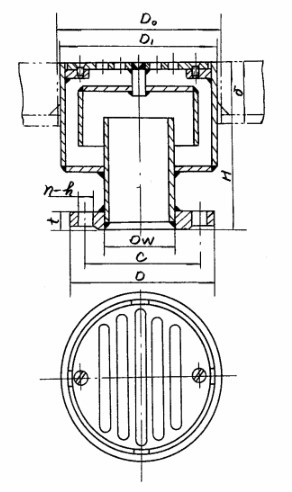

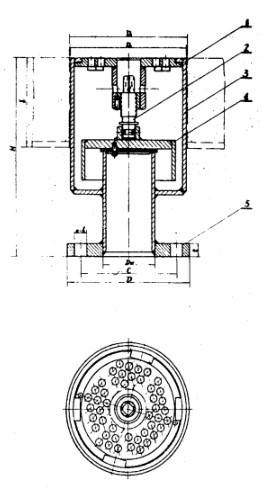

Main Components of Flange Type Deck Scupper
| Component | Function |
|---|---|
| Scupper Body | Main drainage passage structure |
| Flange Plate | Provides bolted connection with piping or deck |
| Drain Outlet | Transfers water into drainage pipeline |
| Inlet Opening | Collects deck surface water |
| Gasket | Ensures watertight sealing |
| Bolts and Nuts | Fixes flange connection |
| Protective Coating | Provides corrosion resistance |
Applicable Standards of Flange Type Deck Scupper
| Standard Category | Applicable Standards |
|---|---|
| Marine Scupper Standards | CBM 1068-81 |
| Shipbuilding Standards | CB/T 3855-2014 |
| Marine Pipe Fittings | CB/T Series Standards |
| Flange Standards | GB/T 9112, CB/T Marine Flange Standards |
| Material Standards | GB, ASTM, EN, JIS Standards |
| Classification Requirements | CCS, ABS, DNV, LR, BV |
Material Selection of Flange Type Deck Scupper
| Material | Features | Applications |
|---|---|---|
| Bronze | Excellent seawater corrosion resistance | Marine deck drainage |
| Stainless Steel | High corrosion resistance and durability | Passenger ships, offshore vessels |
| Cast Iron | Strong and economical | Cargo ships and general vessels |
| Cast Steel | High strength | Heavy-duty marine structures |
| Aluminum Alloy | Lightweight and corrosion resistant | Aluminum vessels |
| Brass | Good corrosion resistance | Small marine drainage fittings |
Common Material Standards
| Material | Standard |
|---|---|
| Bronze | GB/T 1176 / ASTM B62 |
| Stainless Steel | ASTM A351 CF8M / EN 1.4408 |
| Cast Iron | GB/T 9439 |
| Aluminum Alloy | GB/T 1173 |
| Carbon Steel | ASTM A216 WCB |
Technical Specifications of Flange Type Deck Scupper
| Item | Specification |
|---|---|
| Product Name | Flange Type Deck Scupper |
| Type | Flanged Marine Deck Scupper |
| Function | Ship Deck Drainage |
| Standard | CBM 1068-81 / CB/T 3855-2014 |
| Medium | Rainwater, Seawater, Drainage Water |
| Installation Location | Main Deck, Weather Deck, Cargo Deck |
| Connection Type | Flanged Connection |
| Flange Type | Bolted Flange |
| Material Options | Bronze, Stainless Steel, Cast Iron, Steel |
| Surface Treatment | Anti-corrosion Coating / Polishing |
| Application | Shipbuilding and Offshore Drainage Systems |
Performance Test of Flange Type Deck Scupper
| Test Item | Description |
|---|---|
| Dimensional Inspection | Verify flange size and installation dimensions |
| Material Inspection | Confirm material specification |
| Watertight Test | Ensure leakage prevention |
| Flange Sealing Test | Check gasket and connection performance |
| Strength Inspection | Verify mechanical durability |
| Surface Inspection | Check corrosion protection |
Advantages of Flange Type Deck Scupper
| Feature | Benefit |
|---|---|
| Flanged Connection Design | Easy installation and replacement |
| Reliable Sealing Structure | Reduces leakage risk |
| Marine Grade Materials | Suitable for seawater environments |
| Standardized Connection | Compatible with marine piping systems |
| Durable Construction | Long service life onboard vessels |
Typical Applications
| Application | Function |
|---|---|
| Cargo Ship Deck | Removes rainwater and seawater |
| Container Ship | Provides reliable deck drainage |
| Bulk Carrier | Prevents deck water accumulation |
| Tanker Vessel | Maintains safe deck conditions |
| Offshore Platform | Removes surface water |
| Marine Engineering | Provides drainage connection |
