Female-threaded Ball Valve
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This Female-threaded Ball Valve is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:Female-threaded Ball Valve
Connection:JIS 5K
Nominal Diameter:DN10~DN50
Connection Type: Screwed type

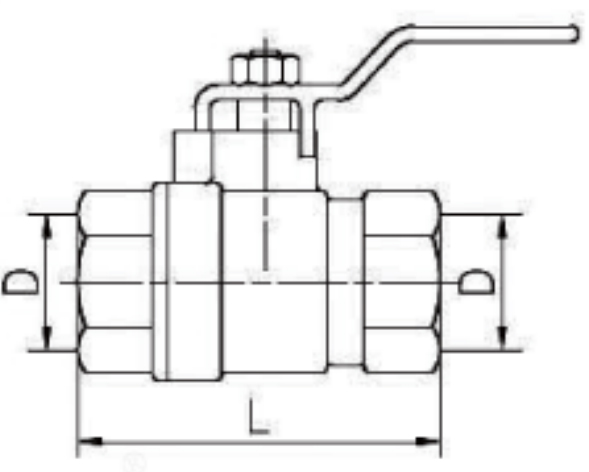

Dimensions Specification:
D1: Inner Diameter
L: Center-to-Center Distance
D: Inner Diameter
H: Height
D | IMPA | D1 | L |
|---|---|---|---|
10 | 752401 | 3/8" | 45 |
15 | 752402 | 1/2" | 52 |
20 | 752403 | 3/4" | 63 |
25 | 752404 | 1" | 72 |
32 | 752405 | 1 1/4" | 77 |
40 | 752406 | 1 1/2" | 86 |
50 | 752407 | 2" | 90 |
