Double-ended Hose Needle Valve
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This Double-ended Hose Needle Valve is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:Double-ended Hose Needle Valve
Nominal Diameter:DN8~DN11
Connection Type: double-ended hose connection

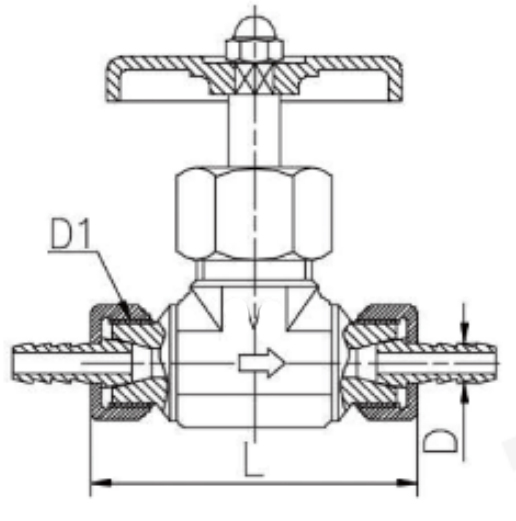

Dimensions Specification:
D1: Inner Diameter
L: Length
D: Nominal Diameter
H: Height
DIMENSION(Unit:mm)
D | IMPA | D1 | L |
|---|---|---|---|
8 | 752136 | 1/4" | 65 |
9.5 | 752137 | 3/8" | 65 |
11 | 752138 | 3/8" | 65 |
