Double-ended Famale Threaded Needle Valve
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This Double-ended Male Threaded Needle Valve is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:Double-ended Male Threaded Needle Valve
Nominal Diameter:DN6~DN14
Connection Type: Threaded Connection

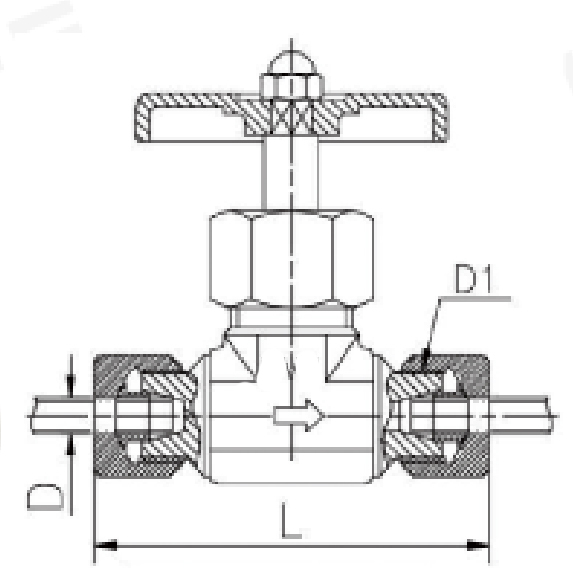

Dimensions Specification:
D1: Inner Diameter
L: Length
D: Nominal Diameter
DIMENSIONS(Unit:mm)
D | IMPA | D1 | L |
|---|---|---|---|
6 | 752101 | 1/4" | 70 |
8 | 752102 | 3/8" | 70 |
10 | 752103 | 3/8" | 73 |
12 | 752104 | 1/2" | 86 |
14 | 752105 | 1/2" | 86 |
