DIN Sounding Cock
This DIN sounding cock is made of high-corrosion-resistant brass with precise thread processing and stable sealing performance. Its mini compact structure enables flexible installation and leak-free long-term cyclic operation.
Overview
Application:It is universally mounted on ship ballast tanks, fuel tanks and various marine liquid storage tanks. It is used for daily manual level sounding inspection to monitor liquid capacity and guarantee vessel navigation safety.
Material Specification:
| No. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Disc | Bronze |
| 3 | Bonnet | Bronze |
| 4 | Cover | Brass |
| 5 | O‑Ring | NBR |
| 6 | Hand lever | HT200 |
| 7 | Counter Weight | HT200 |
General Specification:
| Design Std | |
| Thread Std | ISO 228 |
| Test Standard | EN 12266 |
| Nominal Pressure | 0.25Mpa |
| Applicable Temperature | ≤200℃ |

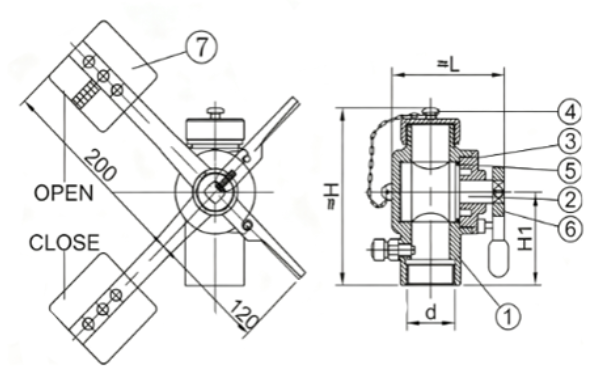

Drawing:
Dimensions:
| DN | d | ≈H | H₁ | ≈L |
| 40 | G 1-1/2" | 170 | 95 | 115 |
| 50 | G 2" | 180 | 100 | 115 |
| 65 | G 2-1/2" | 180 | 100 | 115 |
