DIN Foot Valve
Engineered with a premium Rg5 bronze body and a high-efficiency stainless steel strainer, this DIN standard foot valve delivers reliable soft-sealing check performance and superior debris filtration for tank bottom suction in water and natural liquid systems. Its NBR sealing disc ensures a positive, leak-proof shut-off to prevent pump cavitation, while the robust construction and PN10 flanged connection guarantee durability and easy installation, making it the ideal solution for industrial liquid transfer and pumping stations.
Overview
Application: This DIN Foot Valve is designed for tank bottom suction applications involving water and natural liquids. Combining an integrated strainer suction inlet with a soft sealing disc check valve, it effectively prevents backflow and protects pumps from cavitation, making it highly suitable for a wide range of non-aggressive media.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Bonnet | Bronze |
| 3 | Disc | Bronze |
| 4 | Seal | NBR |
| 5 | Filter | SS |
Technical Specifications:
Design Standard: DIN
Flange Standard: EN1092 (DIN2501)
Test Standard: EN 12266
Applicable temperature: ≤100℃
Pressure rating: PN10

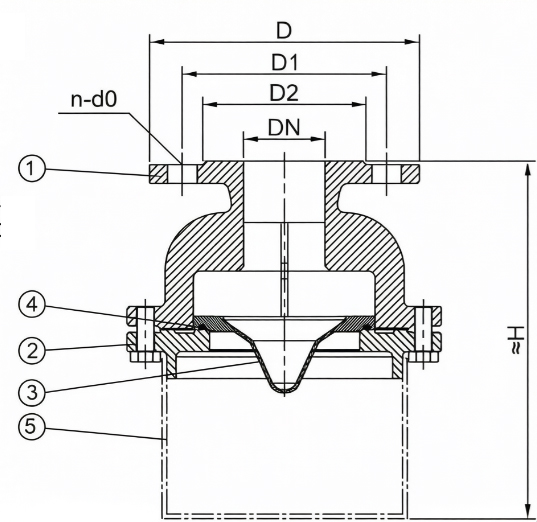

Drawing:
Dimensions (Unit: mm):
| DN | ≈H | D | D1 | D2 | n | d0 |
|---|---|---|---|---|---|---|
| 40 | 230 | 150 | 110 | 88 | 4 | 18 |
| 50 | 230 | 165 | 125 | 102 | 4 | 18 |
| 65 | 280 | 185 | 145 | 122 | 4 | 18 |
| 80 | 300 | 200 | 160 | 138 | 8 | 18 |
| 100 | 315 | 220 | 180 | 158 | 8 | 18 |
