DIN 567002/01 Quick Closing Valve
DIN closing valve adopts high-strength cast housing with stable pressure resistance and durable mechanical performance. Its optimized sealing structure ensures zero leakage during full closing and smooth fluid circulation when fully open.
Overview
Application:It is widely used for fluid cut-off control in marine piping, industrial water, oil and gas pipeline systems. It serves as a key isolation valve to safely close and protect downstream pipeline equipment during maintenance and operation.
Material Specification:
| No. | Part Name | Material |
| 1 | Body | Nodular Cast Iron |
| 2 | Seat | SS |
| 3 | Disc | SS |
| 4 | Spring | SS |
| 5 | Bonnet | Nodular Cast Iron |
| 6 | O‑Ring | NBR |
| 7 | Stem | SS |
| 8 | Handwheel | HT200 |
| 9 | Retainer Block | Brass |
| 10 | Pneumatic Device | 2Cr13 |
General Specification:
| Design Std | |
| Flange Std | EN 1092(DIN 2501) |
| Test Standard | EN 12266 |
| Nominal Pressure | 0.25Mpa |
| Applicable Temperature | ≤200℃ |
| Pressure Rating | PN 2.5 |

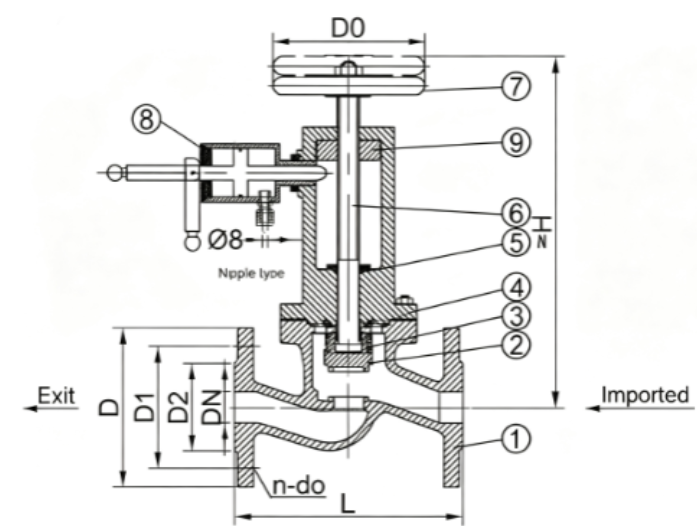

Drawing:
Dimensions:
| DN | L | H | D | D₁ | D₂ | n | d₀ | L₀ |
| 15 | 130 | 200 | 95 | 65 | 45 | 4 | 14 | 300 |
| 20 | 150 | 200 | 105 | 75 | 58 | 4 | 14 | 300 |
| 25 | 160 | 200 | 115 | 85 | 68 | 4 | 14 | 300 |
| 32 | 180 | 205 | 140 | 100 | 78 | 4 | 18 | 300 |
| 40 | 200 | 230 | 150 | 110 | 88 | 4 | 18 | 300 |
| 50 | 230 | 240 | 165 | 125 | 102 | 4 | 18 | 300 |
| 65 | 290 | 250 | 185 | 145 | 122 | 4 | 18 | 300 |
| 80 | 310 | 320 | 200 | 160 | 138 | 8 | 18 | 300 |
