DIN Cast Iron Angle Globe Valve

Engineered with a robust nodular cast iron body and a space-saving angled design, this rising stem globe valve provides precise flow throttling and reliable leak-proof shut-off for critical marine water, steam, and oil systems. Its durable metal seating, bolted bonnet construction, and premium PTFE packing ensure exceptional corrosion resistance and long-lasting performance, meeting strict DIN 86251 and PN16 standards for demanding shipboard applications.

Overview

Application: This Angled Type Globe Valve is designed for aboard ships and industrial applications involving hot and cold water, oil, and steam. It delivers reliable start/stop and throttling control for seawater, water, steam, and oils, making it highly suitable for direct sea applications and marine environments.

Material Specification:

NO	Part	Material
1	Body	Nodular Cast Iron
2	Seat	Bronze
3	Disc	≤65: Bronze; ≥80: Nodular Cast Iron + Brass
4	Stem	Brass
5	Bonnet	Nodular Cast Iron
6	Packing	PTFE
7	Gland	Bronze
8	Bolt/Nut	Q235A
9	Agile	Brass
10	Handwheel	Cast Iron

Technical Specifications:

Face to Face: DIN 558
Design Standard: DIN 86251
Flange Standard: EN1092 (DIN2501)
Test Standard: EN 12266
Applicable temperature: ≤200℃
Pressure rating: PN16 (DN15~150)

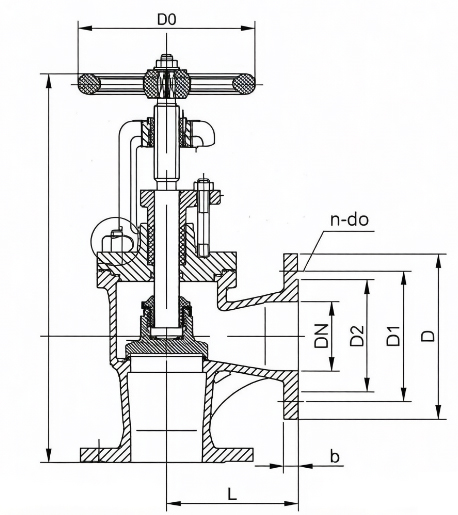

Drawing:

DIN Cast Iron Angel Globe Valve.jpg

Dimensions (Unit: mm):

DN	L	≈H	H1	D	D1	D2	b	n	d0	D0
15	90	173	90	95	65	45	16	4	14	100
20	95	173	95	105	75	58	16	4	14	100
25	100	173	100	115	85	68	16	4	14	100
32	105	190	105	140	100	78	18	4	18	100
40	115	225	115	150	110	88	18	4	18	140
50	125	235	125	165	125	102	20	4	18	140
65	145	246	145	185	145	122	20	4	18	180
80	155	274	155	200	160	138	22	8	18	200
100	175	303	175	220	180	158	24	8	18	200
125	200	310	200	250	210	188	26	8	18	250
150	225	360	225	285	240	212	26	8	22	300
