DIN Bronze Pressure Reducing Valve
Straight Rg5 body adjustable pressure reducing valve with NBR seal. Outlet pressure range 1.5-20 bar. Single manometer fitting. ISO 228 female thread.
Overview
Application: Avoiding distributing line overpressure or pressure peaks due to variations in supply line pressure in neutral non viscous liquids, air, gases and vapours. Not for steam.
Material Specification：
| No. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Disc | Brass |
| 3 | Spring | SS |
| 4 | O-Ring | NBR |
| 5 | Bonnet | Bronze |
| 6 | Stem | Brass |
| 7 | Bonnet | Bronze |
| 8 | Spring seat | 2Cr13 |
| 9 | O-Ring | NBR |
| 10 | Spring | SS |
| 11 | Nut | Q235A |
| 12 | Adjusting lever | Q235A |
| 13 | Lever | Brass |
General Specification:
| Design Standard | |
| Thtrad | ISO 228 |
| Test Standard | EN 12266 |
| Nominal Pressure | |
| Applicable Temperature | ≤100℃ |
| Pressure Rating |

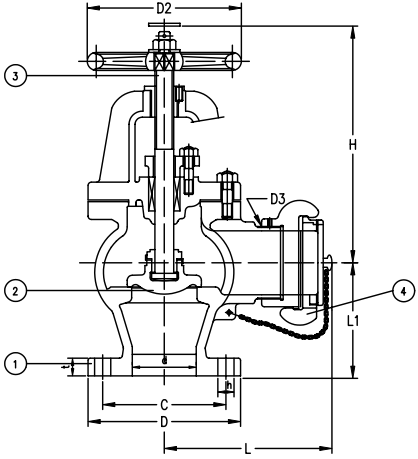

Drawing:
Dimensions:
| DN | G | L | ≈H | D0 |
| 15 | G 1/2" | 100 | 200 | 90 |
| 20 | G 3/4" | 100 | 200 | 90 |
| 25 | G 1" | 100 | 200 | 90 |
