DIN Bronze Male Threaded Straight Globe Valve
Engineered with a premium Rg5 bronze body and robust brass internals, this DIN standard straight globe valve features a rising stem design and a screwed, secured bonnet that guarantees reliable performance under high pressure up to 10.0MPa (PN100). Fully compliant with BS5154 and GOST 2822 male thread standards, it utilizes a durable metal seat and high-quality PTFE packing to deliver leak-proof sealing and exceptional corrosion resistance, making it the ideal solution for critical seawater, steam, and oil throttling applications across marine and industrial sectors.
Overview
Application: This DIN Bronze Male Threaded Straight Globe Valve is designed for precise stop and flow throttling of seawater, water, oils, and steam. Featuring a robust Rg5 bronze body and a metal-seated screw-down stop design, it is perfectly suited for demanding marine and industrial pipeline systems requiring reliable shut-off and tight sealing.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Bonnet | Bronze |
| 5 | Packing | PTFE |
| 6 | Gland | Brass |
| 7 | Gland Nut | Brass |
| 8 | Handwheel | Cast iron |
Technical Specifications:
Design Standard: BS5154
Thread Standard: GOST 2822 (Male thread)
Test Standard: EN 12266
Nominal pressure: 4.0/10.0MPa
Applicable temperature: ≤200℃
Pressure rating: PN40, PN100

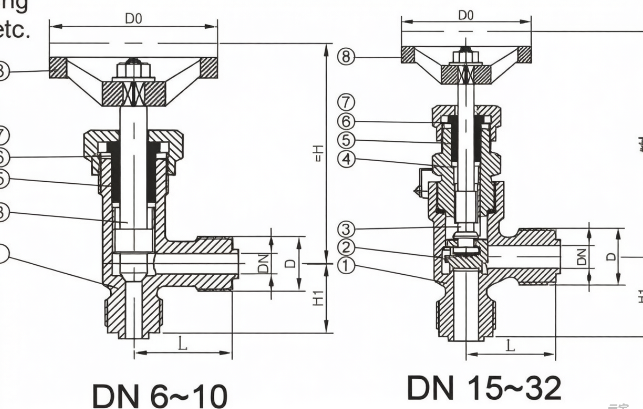

Drawing:
Dimensions (Unit: mm):
| PN | DN | L | ≈H | H1 | D | D0 |
|---|---|---|---|---|---|---|
| 40 | 15 | 110 | 144 | 25 | M36X2 | 100 |
| 20 | 116 | 154 | 32 | M39X2 | 100 | |
| 25 | 130 | 168 | 38 | M48X2 | 140 | |
| 32 | 140 | 190 | 46 | M56X2 | 140 | |
| 100 | 6 | 74 | 90 | 12 | M22X1.5 | 65 |
| 10 | 94 | 109 | 16 | M27X1.5 | 80 | |
| 15 | 120 | 155 | 27 | M36X2 | 140 | |
| 20 | 134 | 185 | 32 | M39X2 | 140 | |
| 25 | 134 | 195 | 38 | M48X2 | 140 | |
| 32 | 146 | 210 | 46 | M56X2 | 140 |
