DIN Bronze Male Threaded SDNR Angle Valve
Engineered with a robust Rg5 bronze body, a metal-seated structure, and an integrated spring-loaded SDNR mechanism, this DIN angle valve ensures reliable flow throttling and positive shut-off for high-pressure seawater, steam, and oil systems. Fully compliant with BS5154 and GOST 2822 male thread standards, its compact 90-degree angle design reduces installation space while delivering exceptional durability and leak-proof performance at pressures up to PN100 and temperatures up to 200℃, making it the trusted choice for critical marine and industrial pipeline applications.
Overview
Application: This DIN Bronze Male Threaded SDNR (Screw Down Non-Return) Angle Valve is designed for precise stop and flow throttling of seawater, water, oils, and steam. Featuring an angled Rg5 bronze body with a metal-seated structure, rising stem design, and built-in spring-loaded check function, it is ideally suited for demanding marine and industrial piping systems where space is constrained.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Bonnet | Bronze |
| 5 | Packing | PTFE |
| 6 | Gland | Brass |
| 7 | Gland Nut | Brass |
| 8 | Handwheel | Cast iron |
| 9 | Spring | SS |
Technical Specifications:
Design Standard: BS5154
Thread Standard: GOST 2822 (Male thread)
Test Standard: EN 12266
Nominal pressure: 4.0 / 10.0MPa
Applicable temperature: ≤200℃
Pressure rating: PN40, PN100

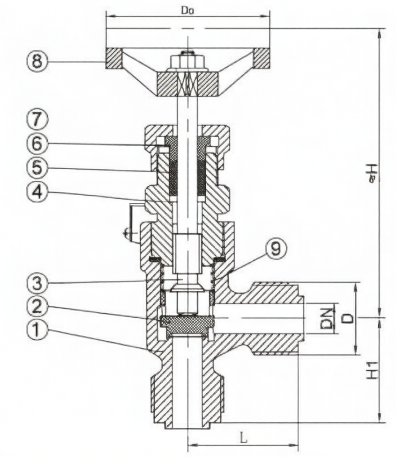

Drawing:
Dimensions (Unit: mm):
| PN | DN | L | ≈H | H1 | D | D0 |
|---|---|---|---|---|---|---|
| 40 | 10 | 94 | 109 | 16 | M27X1.5 | 80 |
| 15 | 110 | 144 | 25 | M36X2 | 100 | |
| 20 | 116 | 154 | 32 | M39X2 | 100 | |
| 25 | 130 | 168 | 38 | M48X2 | 140 | |
| 32 | 140 | 190 | 46 | M56X2 | 140 | |
| 100 | 15 | 120 | 155 | 27 | M36X2 | 140 |
| 20 | 134 | 185 | 32 | M39X2 | 140 | |
| 25 | 134 | 195 | 38 | M48X2 | 140 | |
| 32 | 146 | 210 | 46 | M56X2 | 140 |
