DIN Bronze Male Threaded Angle Globe Valve
Engineered with a premium Rg5 bronze body and robust brass internals, this DIN Bronze Male Threaded Angle Globe Valve features a rising stem design and a securely screwed bonnet, guaranteeing reliable high-pressure performance up to 10.0MPa (PN100). Fully compliant with BS5154 and GOST 2822 male thread standards, it utilizes a durable metal seat and high-quality PTFE packing to deliver exceptional sealing, corrosion resistance, and precise throttling capabilities for demanding seawater, steam, and oil systems across marine and industrial sectors.
Overview
Application: This DIN Bronze Male Threaded Straight Globe Valve is designed for precise stop and flow throttling of seawater, water, oils, and steam. Featuring an angled type Rg5 bronze body and a metal-seated screw-down design with a rising stem, it is perfectly suited for demanding marine and industrial pipeline systems.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Bonnet | Bronze |
| 5 | Packing | PTFE |
| 6 | Gland | Brass |
| 7 | Gland Nut | Brass |
| 8 | Handwheel | Cast iron |
Technical Specifications:
Design Standard: BS5154
Thread Standard: GOST 2822 (Male thread)
Test Standard: EN 12266
Nominal pressure: 4.0 / 10.0MPa
Applicable temperature: ≤200℃
Pressure rating: PN40, PN100

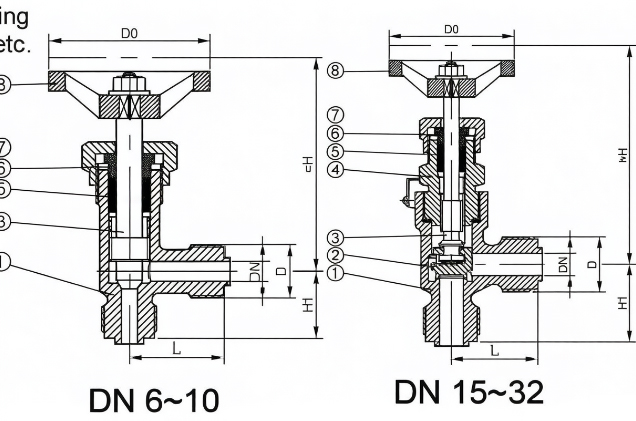

Drawing:
Dimensions (Unit: mm):
| PN | DN | L | ≈H | H1 | D | D0 |
|---|---|---|---|---|---|---|
| 40 | 15 | 55 | 144 | 52 | M36X2 | 100 |
| 20 | 58 | 154 | 55 | M39X2 | 100 | |
| 25 | 65 | 168 | 64 | M48X2 | 140 | |
| 32 | 70 | 190 | 72 | M56X2 | 140 | |
| 100 | 6 | 37 | 90 | 32 | M22X1.5 | 65 |
| 10 | 47 | 109 | 38 | M27X1.5 | 80 | |
| 15 | 60 | 155 | 52 | M36X2 | 140 | |
| 20 | 67 | 185 | 55 | M39X2 | 140 | |
| 25 | 67 | 195 | 64 | M48X2 | 140 | |
| 32 | 73 | 210 | 75 | M56X2 | 140 |
