DIN Bronze Female Threaded Globe Valve
Engineered with a robust Rg5 bronze body and a precision metal-seated rising stem design, this DIN globe valve provides exceptional flow throttling and positive shut-off for seawater, water, oil, and steam applications. Featuring a securely screwed bonnet and ISO 228 female threads, coupled with a high-quality PTFE packing, it guarantees leak-proof sealing, superior corrosion resistance, and reliable performance at pressures up to PN16 and temperatures up to 200℃.
Overview
Application: This DIN Bronze Female Threaded Globe Valve is designed for precise stop and throttling control of seawater, water, oils, and steam. Featuring a robust Rg5 bronze body with a rising stem and metal-seated design, it is ideal for reliable flow management in marine and industrial pipeline systems.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Disc | Brass (DN≤32) / Bronze (DN40,50) |
| 3 | Stem | Brass |
| 4 | Bonnet | Bronze |
| 5 | Packing | PTFE |
| 6 | Gland | Brass |
| 7 | Gland Nut | Brass |
| 8 | Handwheel | Cast iron |
Technical Specifications:
Design Standard: BS5154
Thread Standard: ISO 228 (Female thread)
Test Standard: EN 12266
Nominal pressure: 1.6 MPa
Applicable temperature: ≤200℃
Pressure rating: PN16

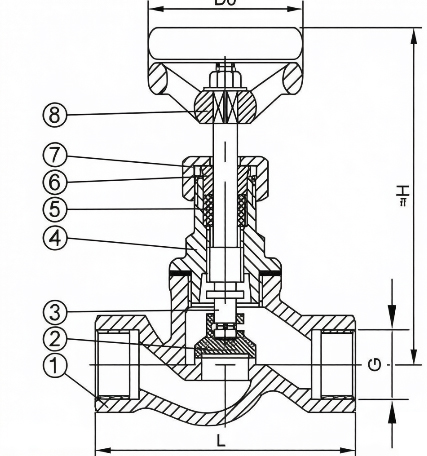

Drawing:
Dimensions (Unit: mm):
| DN | L | ≈H | G | D0 |
|---|---|---|---|---|
| 6 | 65 | 86 | G 1/4" | 65 |
| 10 | 75 | 88 | G 3/8" | 65 |
| 15 | 84 | 100 | G 1/2" | 65 |
| 20 | 95 | 112 | G 3/4" | 65 |
| 25 | 110 | 125 | G 1" | 100 |
| 32 | 130 | 139 | G 1-1/4" | 100 |
| 40 | 150 | 155 | G 1-1/2" | 140 |
| 50 | 180 | 175 | G 2" | 140 |
