DIN 482322 Strainer
The inclined Y-shaped channel reduces fluid resistance while the thick cast iron body delivers reliable pressure bearing and structural durability.The bottom bolted end cap allows quick removal of the filter screen without detaching the valve from the whole pipeline.
Overview
Application:It is widely installed on marine water pipelines, heating systems and industrial fluid piping for routine solid particle filtration.It suits circulating water, fire control and process medium pipelines to prevent pump, valve and meter blockage and abrasion.
Material Specification:
| NO. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Bonnet | Bronze |
| 3 | Filter | SS |
| 4 | Gasket | Aramid fiber |
General Specification:
| Design Std | |
| Thread Std | IOS 228 |
| Test Standard | EN 12266 |
| Nominal Pressure | 1.6Mpa |
| Applicable Temperature | ≤200℃ |
| Pressure Rating | PN 16 |

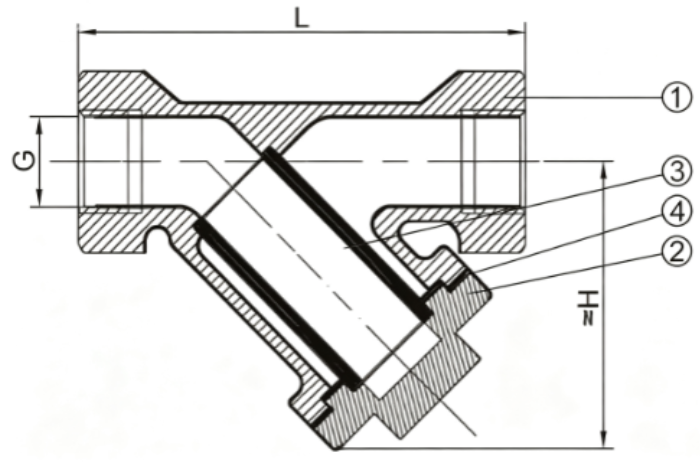

Drawing:
Dimensions:
| DN | L | ≈ H | G |
| 15 | 60 | 38 | G 1/2" |
| 20 | 70 | 46 | G 3/4" |
| 25 | 82 | 54 | G 1" |
| 32 | 94 | 62 | G 1-1/4" |
| 40 | 105 | 72 | G 1-1/2" |
| 50 | 130 | 89 | G 2" |
