DIN 3-Way T-Port Cock
Made of Rg5 bronze body and plug with PTFE packing, this cock valve delivers durable sealing and excellent wear resistance under long-term operation.Equipped with cast iron hand lever and GOST 2822 male thread ends, it enables easy installation and operation with a compact overall structure.
Overview
Application:It serves as shut-off and distribution equipment for compressed air, general gases, non-corrosive liquids and slurries in piping systems.Widely applied on industrial machinery and marine pipelines to realize medium merging, diverting and pipeline on-off control.
Material Specification:
| No. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Disc | Bronze |
| 3 | Packing | PTFE |
| 4 | Gland | Brass |
| 5 | Nut | Brass |
| 6 | Hand lever | HT200 |
General Specification:
| Design Std | — |
| Thread Std | GOST 2822 |
| Test Std | EN 12266 |
| Nominal pressure | 1.0 MPa |
| Applicable temperature | ≤ 200 ℃ |
| Pressure rating | PN10 |

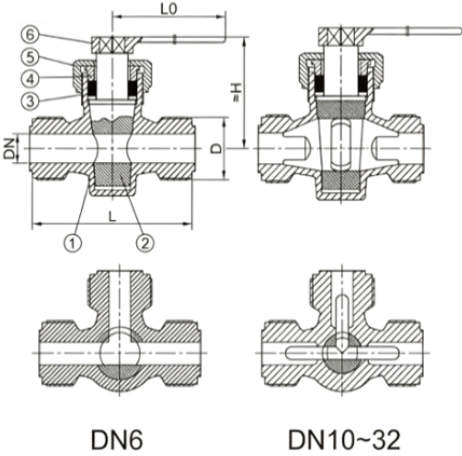

Drawing:
Dimensions:
| DN | L | H | H₁ | D | L₀ |
| 6 | 70 | 60 | 23 | M22×1.5 | 100 |
| 10 | 78 | 72 | 30 | M27×1.5 | 110 |
| 15 | 92 | 82 | 33 | M36×2 | 115 |
| 20 | 98 | 117 | 37 | M36×2 | 125 |
| 25 | 106 | 115 | 42 | M42×2 | 140 |
| 32 | 126 | 120 | 49 | M48×2 | 160 |
