DIN 3-Way L-Port Cock
This L-type three-way plug cock is constructed with bronze valve body and plug, fitted with PTFE packing for excellent sealing and wear resistance.It is designed with GOST 2822 external thread connection, rated PN10 pressure and working temperature up to 200℃ for long-term stable operation.
Overview
Application:It serves as shut-off and flow diversion component for compressed air, industrial gas, clean non-corrosive liquid and slurry medium pipelines.Widely applied in pneumatic systems, general industrial piping and fluid distribution equipment to realize simple pipeline cut-off and direction switching.
Material Specification:
| No. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Disc | Bronze |
| 3 | Packing | PTFE |
| 4 | Gland | Brass |
| 5 | Nut | Brass |
| 6 | Hand lever | HT200 |
General Specification:
| Design Std | — |
| Thread Std | GOST 2822 |
| Test Std | EN 12266 |
| Nominal pressure | 1.0 MPa |
| Applicable temperature | ≤ 200 ℃ |
| Pressure rating | PN10 |

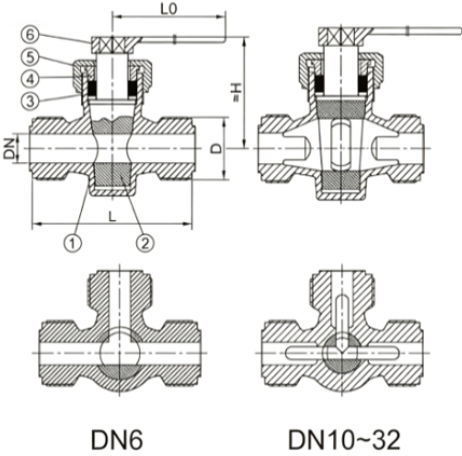

Drawing:
Dimensions:
| DN | L | H | H₁ | D | L₀ |
| 6 | 70 | 60 | 23 | M22×1.5 | 100 |
| 10 | 78 | 72 | 30 | M27×1.5 | 110 |
| 15 | 92 | 82 | 33 | M36×2 | 115 |
| 20 | 98 | 117 | 37 | M36×2 | 125 |
| 25 | 106 | 115 | 42 | M42×2 | 140 |
| 32 | 126 | 120 | 49 | M48×2 | 160 |
