Deck Control Unit
Deck Control Unit is a marine deck-mounted control device designed for remote operation and monitoring of valves and cargo handling equipment on ships.
The unit provides centralized control of marine valves installed in cargo tanks, ballast systems, fuel systems, and other ship piping systems, allowing operators to safely manage equipment from the deck area.
Deck Control Unit is commonly used in:
Oil tanker cargo systems
Tank deck valve control systems
Ballast systems
Fuel oil systems
Marine hydraulic control systems
Remote valve operating systems
Compared with traditional manual valve operation, the Deck Control Unit improves operational safety by allowing crew members to control valves without directly accessing hazardous or difficult-to-reach locations.
Overview
Working Principle of Deck Control Unit
Deck Control Unit transfers operator commands from the deck control position to remote valves or marine equipment.
Depending on the design, the control unit can operate through:
Mechanical transmission
Hydraulic control system
Cable linkage system
Operating Process:
Operator operates the control handle or handwheel.
The control mechanism transfers the operating force.
The connected valve actuator receives the signal.
The remote valve opens or closes.
The indicator displays the operating status.

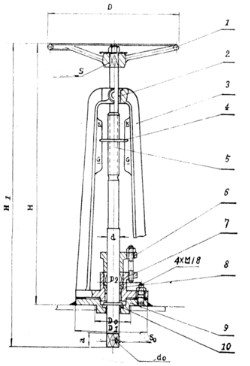

Main Components of Deck Control Unit
| Component | Function |
|---|---|
| Control Housing | Protects internal control mechanism |
| Operating Handle / Handwheel | Provides manual input |
| Transmission Mechanism | Transfers operating movement |
| Control Shaft | Connects with remote equipment |
| Gear Assembly | Provides mechanical transmission |
| Position Indicator | Shows valve status |
| Mounting Bracket | Fixes unit on deck |
| Protective Cover | Prevents corrosion and damage |
| Sealing Components | Protects against seawater intrusion |
Applicable Standards of Deck Control Unit
| Standard Category | Applicable Standards |
|---|---|
| Marine Equipment Standards | CB/T Marine Equipment Standards |
| Shipbuilding Standards | GB / CB Standards |
| Tanker Safety Requirements | IMO SOLAS Requirements |
| Cargo Control System Requirements | IMO / Marine Industry Requirements |
| Material Standards | ASTM / JIS / GB / EN Standards |
| Classification Requirements | CCS, ABS, DNV, LR, ClassNK |
Material Selection of Deck Control Unit
| Material | Features | Applications |
|---|---|---|
| Stainless Steel | Excellent corrosion resistance | Offshore and chemical vessels |
| Cast Steel | High strength and durability | Tankers and cargo ships |
| Carbon Steel | Economical and reliable | General marine applications |
| Aluminum Alloy | Lightweight and corrosion resistant | Special vessels |
| Bronze | Corrosion-resistant mechanical parts | Marine components |
Common Material Standards
| Material | Standard |
|---|---|
| Stainless Steel | ASTM A351 CF8M |
| Cast Steel | ASTM A216 WCB |
| Carbon Steel | ASTM A36 |
| Aluminum Alloy | ASTM B209 |
| Bronze | ASTM B62 |
Technical Specifications of Deck Control Unit
| Item | Specification |
|---|---|
| Product Name | Deck Control Unit |
| Type | Marine Remote Control Device |
| Function | Remote Valve Control and Monitoring |
| Installation Location | Main Deck / Tank Deck |
| Control Method | Manual / Mechanical / Hydraulic |
| Applicable Equipment | Cargo Valve, Ballast Valve, Tank Valve |
| Transmission Type | Shaft / Gear / Hydraulic |
| Material Options | Stainless Steel / Cast Steel / Carbon Steel |
| Surface Treatment | Marine Anti-corrosion Coating |
| Application | Tanker and Marine Piping Systems |
Performance Test of Deck Control Unit
| Test Item | Description |
|---|---|
| Operation Test | Checks control movement |
| Transmission Test | Verifies control accuracy |
| Load Test | Confirms mechanical strength |
| Function Test | Ensures valve operation performance |
| Corrosion Test | Checks protective coating |
| Dimensional Inspection | Ensures installation compatibility |
Advantages of Deck Control Unit
| Feature | Benefit |
|---|---|
| Centralized Control | Simplifies valve operation |
| Remote Operation | Improves onboard safety |
| Marine Design | Suitable for harsh sea environments |
| Reliable Transmission | Ensures accurate control |
| Easy Maintenance | Reduces service requirements |
Typical Applications
| Application | Function |
|---|---|
| Oil Tanker Cargo System | Controls cargo valves |
| Tank Deck System | Operates tank equipment |
| Ballast System | Controls ballast valves |
| Fuel Oil System | Provides remote operation |
| Offshore Platform | Controls marine equipment |
| Ship Piping System | Improves operational efficiency |
