Class 150 Bronze Angle Valve
Materials of main parts
Body Material: Bronze
Disc Material: Bronze or Brass
Stem Material: Brass
Overview
Application:This Class 150 Bronze Angle Valve is designed for marine applications involving sea water, water, steam and oils.
Material Specification:
No | Parts | Material |
|---|---|---|
1 | Body | Bronze |
2 | Bonnet | Bronze Forged Brass |
3 | Disc | Bronze Or Brass |
4 | Union Bonnet Nut | Bronze Or Brass |
5 | Packing Gland | Brass |
6 | Bonnet Nut | Bronze Forged Brass |
7 | Stem | Brass |
8 | Packing | Teflon |
9 | Hex Nut | Brass |
10 | Handle | Cast Iron |
11 | Name Plate | Aluminum |
Technical Specifications:
Model: Class 150 Bronze Angle Valve
Hydrostatic Test Pressure (kgf/cm²):
Rating
Psi
Kgf/cm²
Shell
350
24.1
Seat
225
15.5

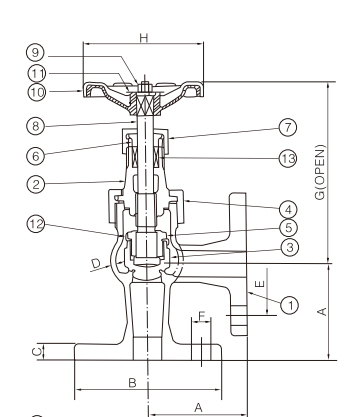

Drawing:
Dimensions(mm):
Valve Size | In | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|
Mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
A End To End | In | 4.0 | 4.75 | 5.38 | 6.0 | 7.25 | 8.0 | 9.0 | 10.0 |
Mm | 101.6 | 120.7 | 136.5 | 152.4 | 184.2 | 203.2 | 228.6 | 254 | |
B Out Dia | In | 3.75 | 4.63 | 4.88 | 5.25 | 6.13 | 6.5 | 7.5 | 8.25 |
Mm | 95.3 | 117.5 | 123.8 | 133.4 | 155.6 | 165.1 | 190.5 | 209.6 | |
C Fig Thick | In | 0.5 | 0.53 | 0.59 | 0.63 | 0.69 | 0.75 | 0.81 | 0.88 |
Mm | 12.7 | 13.5 | 15.1 | 15.9 | 17.5 | 19.0 | 20.6 | 22.2 | |
D Wall Thick | In | 0.157 | 0.197 | 0.236 | 0.256 | 0.276 | |||
Mm | 4.0 | 5.0 | 6.0 | 6.5 | 7.0 | ||||
E P.c Dia | In | 2.63 | 3.25 | 3.5 | 3.88 | 4.5 | 5.0 | 5.88 | 6.63 |
Mm | 66.7 | 82.6 | 88.9 | 98.4 | 114.3 | 127.0 | 149.2 | 168.3 | |
F Size Of Holes | In | 4--0.63 | 4--0.75 | 4--0.88 | 8--0.75 | 8--0.88 | 8--0.88 | ||
Mm | 4--15.9 | 4--19.0 | 4--22.2 | 8--19.0 | 8--22.2 | 8--22.2 | |||
G Height | In | 5.1 | 5.5 | 6.3 | 6.7 | 7.5 | 8.3 | 9.3 | 10.2 |
Mm | 130 | 140 | 160 | 170 | 190 | 210 | 235 | 260 | |
H Handwheel | In | 3.15 | 4.0 | 4.0 | 4.92 | 4.92 | 5.51 | 6.3 | 7.09 |
Mm | 80 | 100 | 100 | 125 | 125 | 140 | 160 | 180 | |
