Class 150/300 Cast Steel Angle Globe Valve
Materials of main parts
Body Material: WCB/CF8/CF8M/B62
Disc Material: WCB/CF8/CF8M/B62
Stem Material: 13Cr/F304/F316/B62
Overview
Application:This Class 150/300 Cast Steel Angle Globe Valve is designed for marine applications involving water, oil, gas.
Material Specification:
Body/Bonnet | Stem | Disc | Bolt | Nut | Gasket |
|---|---|---|---|---|---|
WCB | 13Cr | WCB | B7 | 2H | Flexible Graphite+304 |
CF8 | F304 | CF8 | B8 | 8 | Flexible Graphite+304 |
CF8M | F316 | CF8M | B8 | 8 | Flexible Graphite+304 |
B62 | B62 | B62 | B8 | 8 | Flexible Graphite+304 |
Technical Specifications:
Model: Class 150/300 Cast Steel Angle Globe Valve
Design and manufacture: BS 1873
Face to face: ASME B16.10
Flange Ends: ASME B16.5
Test & Inspection: API 598
Hydrostatic Test Pressure (kgf/cm²):
Nominal Pressure (lb)
Shell Test (mpa)
Sealing Test
Suitable Temp (℃)
Suitable Medium
150
3.0
2.2
CS: -29~425
SS: -59~540
Cu: -40~250
Water
Oil
Gas
300
7.5
5.5

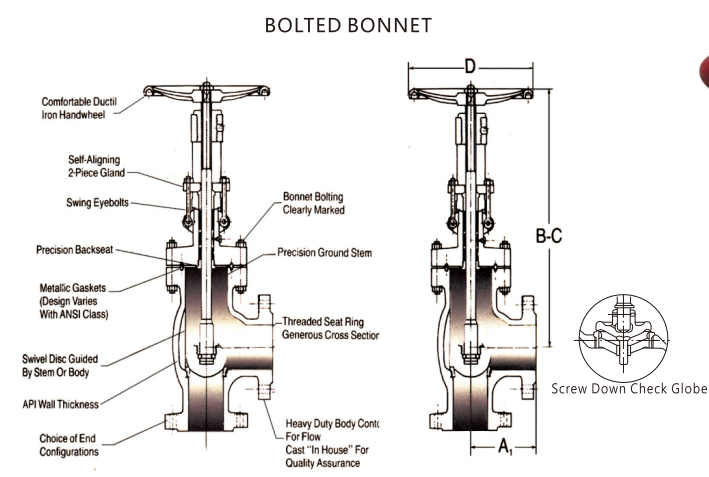

Drawing:
Dimensions (150lb):
Valve Size | In / mm | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|
A Center To Face | In | 4.0 | 4.25 | 4.75 | 5.75 | 7 | 8 | 9.75 | 12.25 | 13.75 |
mm | 102 | 108 | 121 | 146 | 178 | 203 | 248 | 311 | 349 | |
B Valve Open | In | 14.7 | 14.4 | 417 | 500 | 549 | 22.2 | 26.3 | 30.4 | 34.6 |
mm | 373 | 366 | 14.8 | 17.6 | 19.5 | 564 | 668 | 772 | 879 | |
C Valve Closed | In | 13.5 | 10 | 376 | 447 | 495 | 20.2 | 23.6 | 24.8 | 27.0 |
mm | 343 | 254 | 10 | 12 | 14 | 513 | 599 | 630 | 686 | |
D Handwheel Dia | In | 8 | 254 | 305 | 356 | 16 | 18 | 22 | 24 | |
mm | 203 | 406 | 457 | 559 | 610 |
Dimensions (300lb):
Valve Size | In / mm | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|
A Center To Face | In | 5.25 | 5.75 | 6.25 | 7.00 | 7.87 | 8.75 | 11.0 | 12.25 | 14.00 |
mm | 133 | 146 | 159 | 178 | 200 | 222 | 279 | 311 | 356 | |
B Valve Open | In | 16.7 | 17.5 | 19.0 | 22.8 | 29.2 | 30.3 | 35.6 | 40.2 | 47.1 |
mm | 424 | 445 | 483 | 579 | 691 | 770 | 904 | 1021 | 1196 | |
C Valve Closed | In | 15.4 | 16.0 | 17.3 | 20.7 | 25.0 | 28.1 | 32.7 | 34.6 | 39.5 |
mm | 391 | 406 | 438 | 526 | 635 | 714 | 831 | 879 | 1003 | |
D Handwheel Dia | In | 10 | 10 | 12 | 14 | 14 | 18 | 24 | 24 | 27 |
mm | 254 | 254 | 305 | 356 | 356 | 457 | 610 | 610 | 686 |
