Trunnion Ball Valve

Class 150/300/600 Trunnion Ball Valve

Hermetic Metal-Seated Trunnion Ball Valves deliver zero-leakage reliability for high-pressure oil, gas, and chemical pipelines, featuring ASME B16.34-compliant robust construction and extended service life.
Full/Reduced Bore Configurations (2"–60", 150LB–600LB) optimize flow efficiency and cost-effectiveness, while trunnion-mounted ball design eliminates friction, ensuring smooth operation and minimal wear.

Overview

Application:This Trunnion Ball Valve is designed for marine applications involving Fresh water, Sewage, Sea water,Steam, Oils.

Material Specification:

Component	Material
Body, Connector	Cabon & Stainless steel
Ball	316+Hard chrom plating
Seats	316+Solid stelite6
Packing, Seat seals	Graphite

Technical Specifications:

Design And Manufacture：API 6D, API 608
Inspection And Test：API 6D, ASME B 16.34
Face To Face：ASME B 16.10, API 6D
End Flange：ASME B 16.5, API 6D
Fire Test：API 6FA, API 607
Size：2"-60" Full Bore, Reduced Bore
Class：ASME 150~2500 Class
Temperature：-29~330℃
Body Material：A105, A182-F316L, A182-F51, A105-LCB, A216-WCB, A217-WC6, A352-LCB, A351-CF8, A351-CF8M, A351 CF8c, B150-B62
Stem：ASME 1045 / 304 / 316
Sealing：Soft Sealing or Metal To Metal Seat, Viton O-ring, and Flexible Graphite.
Operation：Manual, Pneumatic or Electric Actuator
Appendix：Automatic Relief Of The Cavity; Fire-safe, Lock Device, Extended Stem, Blow-out Proof Stem, Sealant Fittings, Etc.

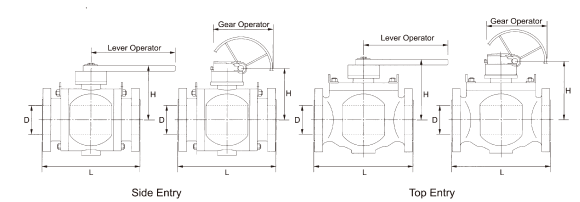

Drawing:

ANSI Ball Valve.png

150lb Full Bore Dimensions:

	DN	D	Side Entry L FLG	Side Entry L BW	Side Entry H	Side Entry Operator Lever	Side Entry Operator Gear	Side Entry Weight FLG (kg)	Side Entry Weight BW (kg)	Top Entry L FLG	Top Entry L BW	Top Entry H	Top Entry Operator Lever	Top Entry Operator Gear	Top Entry Weight FLG (kg)	Top Entry Weight BW (kg)
2"	50	51	178	216	157	150	-	14	10	292	292	207	150	-	20	17
3"	80	76	203	283	198	200	-	26	19	356	356	223	200	-	53	47
4"	100	102	229	305	247	300	-	43	33	432	432	280	300	-	74	65
6"	150	152	356	457	280	300	-	162	149	559	559	275	300	-	172	159
8"	200	203	394	521	320	-	300	263	241	660	660	321	-	300	302	280
10"	250	254	457	559	337	-	500	410	381	787	787	355	-	500	536	507
12"	300	305	533	635	374	-	500	634	578	838	838	470	-	500	663	607
14"	350	337	610	762	408	-	700	890	813	889	889	455	-	700	762	685
16"	400	387	686	838	439	-	700	1280	1176	991	991	460	-	700	1336	1232
18"	450	438	762	914	492	-	700	1840	1738	1092	1092	503	-	700	1963	1861
20"	500	489	864	991	528	-	800	2120	1986	1194	1194	560	-	800	2362	2228
24"	600	591	1067	1143	627	-	800	2730	2540	1397	1397	610	-	800	2931	2741
26"	650	641	1245	1245	644	-	800	3685	3435	1448	1448	670	-	800	3820	3570
28"	700	692	1346	1346	691	-	900	4490	4190	1549	1549	730	-	900	4650	4351
30"	750	743	1397	1397	742	-	900	5430	5080	1651	1651	800	-	900	5632	5282
32"	800	780	1524	1524	759	-	900	6800	6340	1778	1778	846	-	900	6963	6503
34"	850	830	1626	1626	812	-	900	7800	7320	1930	1930	870	-	900	7630	7150
36"	900	875	1727	1727	900	-	900	8800	8220	2083	2083	935	-	900	8620	8040
40"	1000	975	1956	1956	943	-	1000	12560	11860	2337	2337	1112	-	1000	11906	11206
42"	1050	1020	2083	2083	1097	-	1000	14280	13480	2437	2437	1170	-	1000	13860	13060
48"	1200	1165	2170	2170	1253	-	1000	21900	20760	2540	2540	1190	-	1000	20620	19480
56"	1400	1260	2500	2500	1320	-	1000	34100	32260	-	-	-	-	-	-	-
60"	1500	1460	2640	2640	1410	-	1000	38300	36400	-	-	-	-	-	-	-

150lb Reduced Bore Dimensions:

NPS	DN	D	D1	Side L FLG	Side L BW	Side H	Side Op Lever	Side Op Gear	Side Wt FLG	Side Wt BW	Top L FLG	Top L BW	Top H	Top Op Lever	Top Op Gear	Top Wt FLG	Top Wt BW
2x1 1/2"	50x40	51	38	178	216	157	150	-	12	9	292	292	182	150	-	31	28
3x2"	80x50	76	51	203	283	198	200	-	18	17	356	356	243	200	-	64	58
4x3"	100x80	102	76	229	305	247	300	-	32	29	432	432	276	300	-	117	108
6x4"	150x100	152	101	356	457	280	300	-	145	141	559	559	305	300	-	224	211
8x6"	200x150	203	152	394	521	320	-	300	236	232	660	660	327	-	300	381	359
10x8"	250x200	254	203	457	559	337	-	500	375	346	787	787	436	-	500	586	557
12x10"	300x250	305	254	533	635	374	-	500	593	537	838	838	503	-	500	723	667
14x12"	350x300	337	305	610	762	408	-	700	791	714	889	889	512	-	700	869	792
16x14"	400x350	387	337	686	838	439	-	700	1080	976	991	991	596	-	700	1186	1082
18x16"	450x400	438	387	762	914	492	-	700	1632	1530	1092	1092	632	-	700	1530	1428
20x18"	500x450	489	438	864	991	528	-	800	1863	1729	1194	1194	663	-	800	1897	1763
24x20"	600x500	591	489	1067	1143	627	-	800	2639	2449	1397	1397	684	-	800	3160	2970
26x22"	650x500	641	489	1245	1245	644	-	800	3621	3371	1448	1448	702	-	800	3720	3470
28x24"	700x600	692	591	1346	1346	691	-	900	4420	4120	1549	1549	726	-	900	4510	4211
30x24"	750x600	743	591	1397	1397	742	-	900	5410	5060	1651	1651	742	-	900	5612	5262
32x24"	800x600	780	591	1524	1524	759	-	900	6510	6050	1778	1778	765	-	900	7006	6546
34x36"	850x650	830	641	1626	1626	812	-	900	7320	7040	1930	1930	786	-	900	7730	7250
36x30"	900x750	875	743	1727	1727	900	-	900	8210	7630	2083	2083	849	-	900	9103	8523
40x36"	1000x850	975	875	1956	1956	943	-	1000	11203	10503	2337	2337	910	-	1000	10430	9730
42x36"	1050x850	1020	875	2083	2083	1097	-	1000	13105	12305	2437	2437	976	-	1000	11706	10906
48x42"	1200x1050	1165	1020	2170	2170	1253	-	1000	19980	18840	2540	2540	1002	-	1000	12460	11320
56x42"	1400x1050	1360	1020	2500	2500	1320	-	1000	32030	29840	-	-	-	-	-	-	-
60x48"	1500x1320	1460	1300	2640	2640	1410	-	1000	35610	33260	-	-	-	-	-	-	-

Dimension(300lb) Full Bore：

NPS	DN	D	Side L FLG	Side L BW	Side H	Side Op Lever	Side Op Gear	Side Wt FLG	Side Wt BW	Top L FLG	Top L BW	Top H	Top Op Lever	Top Op Gear	Top Wt FLG	Top Wt BW
2"	50	51	216	216	147	300	-	16	13	292	292	232	300	-	37	37
3"	80	76	283	283	198	300	-	42	34	356	356	278	300	-	75	67
4"	100	102	305	305	216	400	-	59	46	432	432	309	400	-	132	119
6"	150	152	403	403	256	400	-	182	149	559	559	356	400	-	245	212
8"	200	203	502	502	348	-	500	337	296	660	660	436	-	500	415	374
10"	250	254	568	568	410	-	500	566	503	787	787	502	-	500	620	67
12"	300	305	648	648	446	-	600	776	682	838	838	589	-	600	758	664
14"	350	337	762	762	468	-	600	1206	1060	889	889	532	-	600	1120	944
16"	400	387	838	838	536	-	600	1603	1427	991	991	656	-	600	1458	1282
18"	450	438	914	914	586	-	700	2231	2017	1092	1092	673	-	700	1960	1746
20"	500	489	991	991	623	-	700	2687	2426	1194	1194	696	-	700	2320	2059
24"	600	591	1143	1143	675	-	700	4456	4043	1397	1397	708	-	700	3990	3577
26"	650	641	1245	1245	768	-	800	5036	4516	1448	1448	748	-	800	4620	4103
28"	700	692	1347	1347	791	-	800	6120	5502	1549	1549	794	-	800	5820	5202
30"	750	743	1397	1397	823	-	1000	6986	6256	1651	1651	852	-	1000	6430	5700
32"	800	780	1524	1524	874	-	1000	9128	8277	1778	1778	992	-	1000	8340	7489
34"	850	830	1626	1626	903	-	1000	9486	8550	1930	1930	1020	-	1000	8996	8060
36"	900	875	1728	1728	950	-	1000	10963	9918	2083	2083	1084	-	1000	9656	8611
40"	1000	975	1956	1956	870	-	1000	14630	13861	2337	2337	1130	-	1000	12730	11961
42"	1050	1020	2083	2083	903	-	1000	17210	16363	2437	2437	1196	-	1000	15876	15029
48"	1200	1165	2388	2388	945	-	1000	25670	24474	2540	2540	1253	-	1000	21063	19867

Dimension(300lb) Reduced Bore：

NPS	DN	D	D1	Side L FLG	Side L BW	Side H	Side Op Lever	Side Op Gear	Side Wt FLG	Side Wt BW	Top L FLG	Top L BW	Top H	Top Op Lever	Top Op Gear	Top Wt FLG	Top Wt BW
2x1 1/2"	50x40	51	38	216	216	147	300	-	15	12	292	292	232	300	-	36	33
3x2"	80x50	76	51	283	283	198	300	-	38	33	356	356	278	300	-	71	65
4x3"	100x80	102	76	305	305	216	400	-	52	45	432	432	309	400	-	125	117
6x4"	150x100	152	101	403	403	256	400	-	176	147	559	559	356	400	-	239	210
8x6"	200x150	203	152	502	502	348	-	500	326	285	660	660	436	-	500	404	363
10x8"	250x200	254	203	568	568	410	-	500	496	468	787	787	489	-	500	550	522
12x10"	300x250	305	254	648	648	446	-	600	721	672	838	838	502	-	600	703	654
14x12"	350x300	337	305	762	762	468	-	600	1160	1003	889	889	532	-	600	1074	917
16x14"	400x350	387	337	838	838	536	-	600	1521	1376	991	991	656	-	600	1376	1231
18x16"	450x400	438	387	914	914	586	-	700	2120	1921	1092	1092	673	-	700	1849	1650
20x18"	500x450	489	438	991	991	623	-	700	2437	2350	1194	1194	696	-	700	2079	1992
24x20"	600x500	591	489	1143	1143	675	-	700	4386	3910	1397	1397	708	-	700	3870	3394
26x22"	650x500	641	489	1245	1245	768	-	800	4852	4401	1448	1448	748	-	800	4436	3985
28x24"	700x600	692	591	1347	1347	791	-	800	5862	5401	1549	1549	794	-	800	5562	5101
30x24"	750x600	743	591	1397	1397	823	-	1000	6770	6021	1651	1651	852	-	1000	6214	5465
32x24"	800x600	780	591	1524	1524	874	-	1000	8980	8621	1778	1778	992	-	1000	8192	7833
34x36"	850x650	830	641	1626	1626	903	-	1000	9210	8150	1930	1930	1020	-	1000	8720	7660
36x30"	900x750	875	743	1728	1728	950	-	1000	10400	9998	2083	2083	1084	-	1000	9686	9284
40x36"	1000x850	975	875	1956	1956	870	-	1000	14210	13690	2337	2337	1130	-	1000	12420	11900
42x36"	1050x850	1020	875	2083	2083	903	-	1000	16820	15800	2437	2437	1196	-	1000	15320	14300
48x42"	1200x1050	1165	1050	2388	2388	945	-	1000	24922	23228	2540	2540	1253	-	1000	20467	19125

Dimension(600lb) Full Bore：

NPS	DN	D	Side L FLG	Side L BW	Side H	Side Op Lever	Side Op Gear	Side Wt FLG	Side Wt BW	Top L FLG	Top L BW	Top H	Top Op Lever	Top Op Gear	Top Wt FLG	Top Wt BW
2"	50	51	292	292	168	100	-	29	22	292	292	226	400	-	48	41
3"	80	76	356	356	207	400	-	91	79	356	356	242	400	-	72	60
4"	100	102	432	432	260	500	-	132	108	432	432	276	500	-	186	162
6"	150	152	559	559	312	-	600	256	216	559	559	324	-	600	275	235
8"	200	203	660	660	370	-	600	392	328	660	660	436	-	600	426	362
10"	250	254	787	787	402	-	700	687	589	787	787	498	-	700	682	584
12"	300	305	838	838	452	-	700	892	787	838	838	489	-	700	778	673
14"	350	337	889	889	520	-	700	1206	982	889	889	574	-	700	928	704
16"	400	387	991	991	587	-	800	1686	1376	991	991	642	-	800	1182	872
18"	450	438	1092	1092	536	-	800	2230	1844	1092	1092	674	-	800	1582	1196
20"	500	489	1194	1194	679	-	900	3460	2973	1194	1194	680	-	900	1967	1480
24"	600	591	1397	1397	702	-	900	4320	3604	1397	1397	703	-	900	3062	2346
26"	650	641	1448	1448	752	-	1000	5480	4654	1448	1448	732	-	1000	3862	3036
28"	700	692	1549	1549	801	-	1000	6420	5498	1549	1549	798	-	1000	4568	3646
30"	750	743	1651	1651	860	-	1000	7820	6798	1651	1651	846	-	1000	5476	4434
32"	800	780	1778	1778	932	-	1000	9231	8051	1778	1778	986	-	1000	6829	5649
34"	850	830	1930	1930	931	-	1000	10020	8740	1930	1930	1012	-	1000	7682	6402
36"	900	875	2083	2083	970	-	1200	11806	10336	2083	2083	1026	-	1200	8632	7162
40"	1000	975	2337	2337	1180	-	1200	16270	14716	2337	2337	1104	-	1200	9276	7722
42"	1050	1020	2437	2437	1270	-	1400	19680	17756	2437	2437	1176	-	1400	10280	8356
48"	1200	1165	2540	2540	1460	-	1400	28260	25504	2540	2540	1136	-	1400	11025	8627

Dimension(600lb) Reduced Bore：

NPS	DN	D	D1	Side L FLG	Side L BW	Side H	Side Op Lever	Side Op Gear	Side Wt FLG	Side Wt BW	Top L FLG	Top L BW	Top H	Top Op Lever	Top Op Gear	Top Wt FLG	Top Wt BW
2x1 1/2"	50x40	51	38	292	292	168	100	-	27	20	292	292	226	400	-	46	39
3x2"	80x50	76	51	356	356	207	400	-	86	75	356	356	242	400	-	70	58
4x3"	100x80	102	76	432	432	260	500	-	128	104	432	432	276	500	-	180	157
6x4"	150x100	152	101	559	559	312	-	600	248	209	559	559	324	-	600	267	228
8x6"	200x150	203	152	660	660	370	-	600	380	318	660	660	436	-	600	413	352
10x8"	250x200	254	203	787	787	402	-	700	667	572	787	787	498	-	700	662	367
12x10"	300x250	305	254	838	838	452	-	700	867	764	838	838	536	-	700	756	654
14x12"	350x300	337	305	889	889	520	-	700	1171	953	889	889	586	-	700	901	684
16x14"	400x350	387	337	991	991	587	-	800	1637	1336	991	991	642	-	800	1148	847
18x16"	450x400	438	387	1092	1092	536	-	800	2165	1807	1092	1092	674	-	800	1551	1173
20x18"	500x450	489	438	1194	1194	679	-	900	3359	2886	1194	1194	680	-	900	1929	1451
24x20"	600x500	591	489	1397	1397	702	-	900	4194	3499	1397	1397	703	-	900	3002	2302
26x22"	650x500	641	489	1448	1448	752	-	1000	5320	4518	1448	1448	732	-	1000	3786	2976
28x24"	700x600	692	591	1549	1549	801	-	1000	6233	5338	1549	1549	798	-	1000	4478	3575
30x24"	750x600	743	591	1651	1651	860	-	1000	7593	6602	1651	1651	846	-	1000	5369	4347
32x24"	800x600	780	591	1778	1778	932	-	1000	8962	7817	1778	1778	986	-	1000	6695	5538
34x36"	850x650	830	641	1930	1930	931	-	1000	9728	8485	1930	1930	1012	-	1000	7532	6276
36x30"	900x750	875	743	2083	2083	970	-	1200	11462	10034	2083	2083	1026	-	1200	8463	7021
40x36"	1000x850	975	875	2337	2337	1180	-	1200	15796	14287	2337	2337	1104	-	1200	9094	7570
42x36"	1050x850	1020	875	2437	2437	1270	-	1400	19106	17238	2437	2437	1176	-	1400	10078	8192
48x42"	1200x1050	1165	1050	2540	2540	1460	-	1400	27436	24761	2540	2540	1136	-	1400	10808	8458
