Class 150/300/600 Gate Valve

Materials of main parts

Body Material: WCB/CF8/CF8M/B62

Disc Material: WCB/CF8/CF8M/B62

Stem Material: 13Cr/F304/F316/B62

Application:This Class 150/300/600 Gate Valve is designed for marine applications involving water, oil, gas.

Material Specification:

Body/bonnet	Stem	Disc	Seat	Bolt	Nut	Packing	Gasket
WCB	13Cr	WCB	A105	B7	2H	Flexible Graphite	Flexible Graphite+304
CF8	F304	CF8	F304	B8	8	Flexible Graphite	Flexible Graphite+304
CF8M	F316	CF8M	F316	B8	8	Flexible Graphite	Flexible Graphite+304
B62	B62	B62	B62	B8	8	Flexible Graphite	Flexible Graphite+304

Technical Specifications:

Model: Class 150/300/600 Gate Valve
Design and manufacture: API 600
Face to face: ASME B16.10
Flange Ends: ASME B16.5
Test & Inspection: API 598
Hydrostatic Test Pressure(MPa):
Nominal Pressure (lb)
Shell Test
Sealing Test
Suitable Temp (℃)
Suitable Medium
150
3.0
2.2
CS:-29~425
SS:-59~540
Cu:-40~250
Water
Oil
Gas

300
7.5
5.5
600
15.0
11.0

Nominal Pressure (lb)	Shell Test	Sealing Test	Suitable Temp (℃)	Suitable Medium
150	3.0	2.2	CS:-29~425 SS:-59~540 Cu:-40~250	Water Oil Gas
300	7.5	5.5
600	15.0	11.0

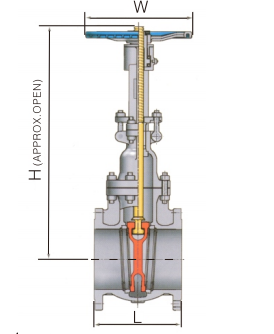

Drawing:

Class 150 300 600 Gate Valve.png

Dimensions:

NPS		2"	2 1/2"	3"	4"	5"	6"	8"	10"	12"	14"	16"
DN(mm)		50	65	80	100	125	150	200	250	300	350	400
L	150lb	178	190	203	229	254	267	292	330	356	381	406
	300lb	216	241	283	305	381	403	419	457	502	762	838
	600lb	292	330	356	432	-	559	660	787	838	889	991
H	150lb	386	435	483	587	673	767	955	1146	1328	1519	1721
	300lb	417	460	526	650	694	824	987	1192	1431	1559	1758
	600lb	427	473	538	657	-	872	1101	1279	1486	1643	1798
W	150lb	200	200	250	250	300	300	350	450	500	600*	600*
	300lb	200	250	250	250	300	350	450	500	560	760*	760*
	600lb	250	250	300	-	500	650	720	760*	760*	760*	760*
