CB T495 Marine Suction Bellmouth
Materials of main parts
Body Material: Carbon steel
Support Material: Carbon steel
Flange Material: Carbon steel
Overview
Application: This CB T495 Marine Suction Bellmouth is designed for marine applications involving fresh water, sea water.
Material Specification:
Parts Name | Material Name | Mark (Grade) |
|---|---|---|
Flange, Body, Support | Carbon steel | Q235-A (for A, AS type) |
Flange, Body, Support | Cast iron | HT200 (for B, BS type) |
Pipe | 10 seamless steel pipes | — |
Clamping screw nail | Brass | H62 |
Technical Specifications:
Model: CB T495 Marine Suction Bellmouth
Pattern | Nominal Diameter DN | Suitable Situation |
|---|---|---|
A, AS | 20 ~ 300 | Suction inlet for various oil tanks and water tanks |
B, BS | 80 ~ 500 | Suction inlet for various oil tanks and water tanks |
C | 20 ~ 300 | Suction inlet for various oil tanks and water tanks |

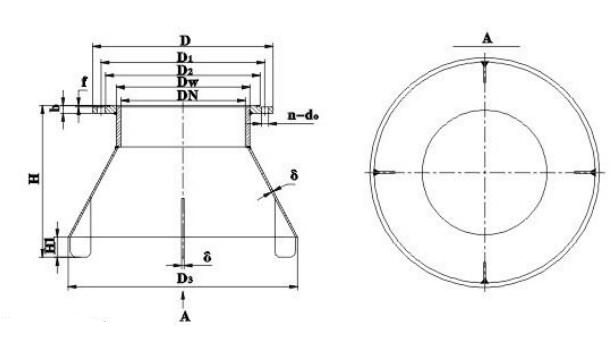

Specification
Type A
DN | DW | Structure dimensions | Flange size | ||||||
D3 | H | H1 | D | D1 | D2 | b | d0 | ||
20 | 25 | 100 | 110 | 15 | 95 | 68 | 48 | 13 | 13 |
25 | 30 | 105 | 115 | 105 | 73 | 56 | 14 | ||
32 | 38 | 110 | 120 | 115 | 83 | 64 | 15 | 15 | |
40 | 45 | 125 | 125 | 125 | 93 | 74 | |||
50 | 57 | 130 | 130 | 135 | 103 | 84 | |||
65 | 70 | 160 | 140 | 20 | 155 | 123 | 104 | 14 | |
80 | 89 | 220 | 175 | 170 | 138 | 118 | |||
100 | 108 | 250 | 185 | 190 | 158 | 138 | |||
125 | 133 | 280 | 195 | 25 | 215 | 183 | 164 | ||
150 | 159 | 320 | 205 | 240 | 208 | 190 | |||
200 | 219 | 350 | 230 | 40 | 295 | 264 | 247 | 15 | |
250 | 273 | 480 | 315 | 45 | 365 | 327 | 306 | 16 | 17 |
300 | 325 | 550 | 330 | 50 | 430 | 386 | 360 | 19 | 21 |
Type AS
DN | DW | Structure dimensions | Flange size | ||||||
D3 | H | H1 | D | D1 | D2 | b | d0 | ||
20 | 25 | 100 | 110 | 15 | 90 | 65 | 50 | 14 | 11 |
25 | 30 | 105 | 115 | 100 | 75 | 60 | |||
32 | 38 | 110 | 120 | 120 | 90 | 70 | 16 | 14 | |
40 | 45 | 125 | 125 | 130 | 100 | 80 | |||
50 | 57 | 130 | 130 | 140 | 110 | 90 | |||
65 | 70 | 160 | 140 | 20 | 160 | 130 | 110 | ||
80 | 89 | 220 | 175 | 190 | 150 | 128 | 18 | 18 | |
100 | 108 | 250 | 185 | 210 | 170 | 148 | |||
125 | 133 | 280 | 195 | 25 | 240 | 200 | 178 | 20 | |
150 | 159 | 320 | 205 | 265 | 225 | 202 | |||
200 | 219 | 350 | 230 | 40 | 320 | 280 | 258 | 22 | |
250 | 273 | 480 | 315 | 45 | 375 | 335 | 312 | 24 | |
300 | 325 | 550 | 330 | 50 | 440 | 395 | 365 | 22 | |
