CB/T467 Marine Cast Bronze Gate Valve

CB/T467 Marine Cast Bronze Gate Valve

Materials of main parts

Body Material: Cast Iron

Disc Material: Cast Iron

Stem Material: Aluminum Bronze



Overview

Application: This CB/T467 Marine Cast Bronze Gate Valve is designed for marine applications involving fresh water, sea water.

Material Specification:

Parts Name

Material Name

Mark (Grade)

Body, Cover

Cast iron

ZCuSn10Zn2

Disc

Cast iron

ZCuSn10Zn2

Stem, Disc nut

Aluminum bronze

CuAl9Mn2

Sealing Ring

Aluminum bronze

CuAl9Mn2

Technical Specifications:

Model: CB/T467 Marine Cast Bronze Gate Valve

Type

Name

Nominal Pressure PN (MPa)

Nominal Diameter DN (mm)

Suitable Media

A  AS

Gate Valve with Flange Connection Dimensions According to GB569

Gate Valve with Flange Connection Dimensions According to GB2501

0.6

40 ~ 150

Sea water, Fresh water

0.4

175 ~ 300

Sea water, Fresh water

0.25

350 ~ 500

Sea water, Fresh water

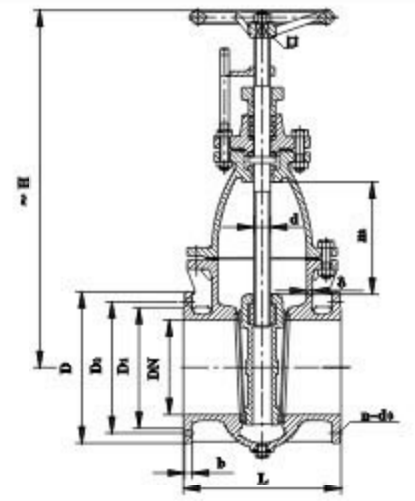

Fundamental dimensions of Marine Cast Bronze Gate Valve CB/T467:

Chart 1 Fundamental dimensions of type A:

PN

DN

Structure Dimension

Flange

Bont

Thickness

Stem

Hand
wheel

Lift
Range

Weight

(MPa)

(mm)

L≈

H≈

D

Di

D2

do

b

n

Th

δ

d

口

Do

m

(kg)

0.6　

40

170

330

125

93

74

15

13

6

M14

6

Tr20 x 8(P4)LH

14

160

48

15

50

190

340

135

103

84

15

16

6

M14

8

Tr20 x 8(P4)LH

14

180

60

20

65

200

372

155

123

104

15

15

6

M14

9

Tr20 x 8(P4)LH

14

180

75

24

80

220

430

170

138

1 18

15

15

8

M14

9

Tr24 x 10(P5)LH

17

200

92

33

100

220

460

190

158

138

15

15

8

M14

10

Tr24 x 10(P5)LH

17

200

112

40

125

242

528

215

183

164

15

15

10

M14

10

Tr26 x 10(P5)LH

19

225

138

61

150

248

566

240

208

190

15

16

12

M14

11

Tr26 x 10(P5)LH

19

225

165

70

0.4　

175

268

630

270

238

221

15

16

12

M14

11

Tr28 x 10(P5)LH

22

250

190

85

200

278

685

295

264

247

15

16

12

M14

11

Tr28 x 10(P5)LH

22

250

215

100

250

310

755

365

327

306

17

18

14

M16

13

Tr30 x 10(P5)LH

24

280

265

153

300

345

835

430

386

360

21

19

14

M20

13

Tr30 x 10(P5)LH

24

280

315

199

Chart 2 Fundamental dimensions of type AS:

PN

DN


Structure Dimension


Flange


Bont

Thickness


Stem

Hand
wheel

Lift
Range

Weight

(MPa)

(mm)

L≈

H≈

D

Di

D2

do

b

n

Th

δ

d

口

Do

m

(kg)

0.6　

40

165

330

130

100

80

14

16

4

M12

6

Tr20 x 8(P4)LH

14

160

48

17

50

178

340

140

110

90

14

16

4

M12

8

Tr20 x 8(P4)LH

4

180

60

20.3

65

190

372

160

130

1 10

14

16

4

M12

9

Tr20 x 8(P4)LH

14

180

75

24.5

80

203

430

190

150

128

18

18

4

M16

9

Tr24 x 10(P5)LH

17

200

92

33.8

100

229

460

210

170

148

18

18

4

M16

10

Tr24 x 10(P5)LH

17

200

112

41.2

125

254

528

240

200

178

18

20

8

M16

10

Tr26 x 10(P5)LH

19

225

138

62.1

150

267

566

265

225

202

18

20

8

M16

11

Tr26 x 10(P5)LH

19

225

165

71.6

0.4　

175

292

630

295

255

232

18

22

8

M16

11

Tr28 x 10(P5)LH

22

250

190

86.4

200

292

685

320

280

258

18

22

8

M16

11

Tr28 x 10(P5)LH

22

250

215

101.8

250

330

755

375

335

312

18

24

12

M16

13

Tr30 x 12(P6)LH

24

280

265

155.1

300

356

835

440

395

365

22

24

12

M20

13

Tr30 x 12(P6)LH

24

280

315

201.2

0.25　

350

381

1050

490

445

415

22

26

12

M20

14

Tr36 x 12(P6)LH

27

320

365

298.3

400

406

1145

540

495

465

22

28

16

M20

15

Tr36 x 12(P6)LH

27

360

418

372.1

450

432

1330

595

550

520

22

28

16

M20

16

Tr40 x 12(P6)LH

32

400

468

560.0

500

457

1420

645

600

570

22

30

20

M20

16

Tr40 x 12(P6)LH

32

450

518

627.4
