CB/T3843 Pressure Relief Valve
Materials of main parts
Body Material: Cast iron
Disc Material: Cast tin bronze
Overview
Application: This CB/T3843 Pressure Relief Valve is designed for marine applications involving fresh water, sea water and Fuel oil.
Material Specification:
Parts Name | Material Name | Material Marks |
|---|---|---|
Body, Cover | Cast iron | HT200 |
Disc | Cast tin bronze | ZCuSn10Zn2 |
Technical Specifications:
Model: CB/T3843 Pressure Relief Valve
Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Available Medium |
|---|---|---|
0.3 ~ 0.5 | 40 ~ 100 | Fresh water, sea water and Fuel oil |

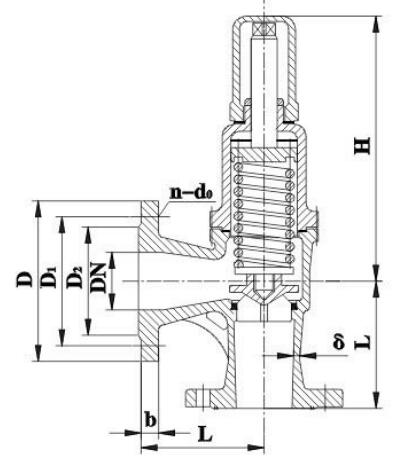

Dimensions(mm)
