CB/T3265 Liquid Gauge Self Closing Valve
Materials of main parts
Body Material: Cast Tin Bronze
Disc Material: Cast Aluminum Bronze
Stem Material: Cast Aluminum Bronze
Overview
Application: This CB/T3265 Liquid Gauge Self Closing Valve is designed for marine applications involving fuel oil, lubricant oil.
Material Specification:
Parts Name | Material Name | Marks (Grade) |
|---|---|---|
Body | Cast Tin Bronze | ZCuSn10Zn2 |
Stem, Cover | Cast Aluminum Bronze | CuAl9Mn2 |
Disc | Cast Aluminum Bronze | CuAl9Mn2 |
Technical Specifications:
Model: CB/T3265 Liquid Gauge Self Closing Valve
Type | Name | Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Available Medium |
|---|---|---|---|---|
Z, ZS | Self-closing Valve with Left-side Connection to Level Gauge | 0.1 | 25 | Fuel oil, Lubricant oil |
Y, YS | Self-closing Valve with Right-side Connection to Level Gauge | 0.1 | 25 | Fuel oil, Lubricant oil |

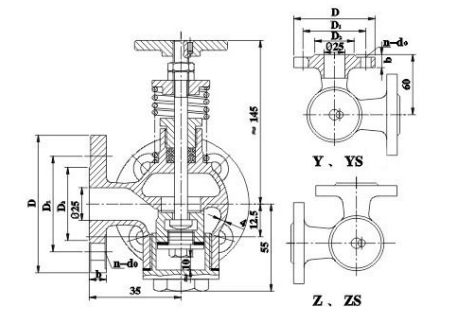

Domensions(mm)
Type | flange | bolt | Weight (kg) | |||||
D | D1 | D2 | d0 | b | n | Th. | ||
Z, Y | 105 | 73 | 56 | 13 | 13 | 4 | M12 | 3.9 |
ZS, YS | 100 | 75 | 60 | 11 | 14 | 4 | M10 | 4.0 |
