CB T3191 High Pressure Ball Valve
Materials of main parts
Body Material: Aluminum bronze
Stem Material: Stainless steel
Overview
Application: This CB T3191 High Pressure Ball Valve is designed for marine applications involving air, carbon dioxide, hydraulic oil.
Material Specification:
Parts Name | Material Name | Marks |
|---|---|---|
Body, Attachment | Aluminum bronze | CuAl9Mn2 (Medium: Carbon dioxide) |
Carbon steel | Steel 35 (Medium: Others) | |
Spheroid, Stem | Aluminum bronze | CuAl9Mn2 (Medium: Carbon dioxide) |
Stainless steel | 2Cr13 (Medium: Others) |
Technical Specifications:
Model: CB T3191 High Pressure Ball Valve
Type | Name | Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Suitable Medium |
|---|---|---|---|---|
A | Ball Valve connected to CB*56 | 6.4, 10.0 | 10 ~ 32 | Air, Carbon dioxide, Hydraulic oil |
B | Ball Valve connected to CB*822 | 16.0, 20.0 | 10 ~ 32 | Air, Carbon dioxide, Hydraulic oil |
C | Ball Valve connected to JB970 | 32.0 | 10 ~ 32 | Air, Carbon dioxide, Hydraulic oil |
D | Ball Valve connected to Hydraulic Flange | 20.0 | 40, 50, 80 | Air, Carbon dioxide, Hydraulic oil |

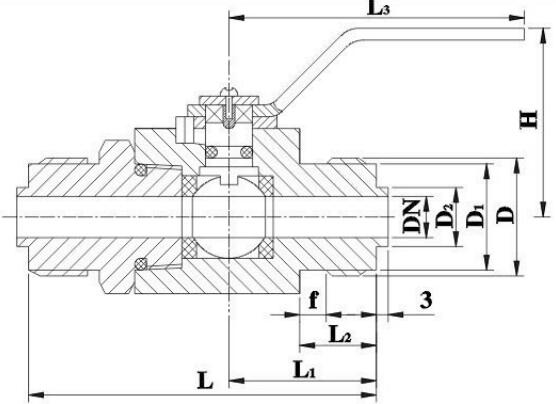

Dimensions(mm)
Type A
PN (MPa) | DN (mm) | Structure dimension | Thread joint | |||||||
L | L1 | L2 | H | D | L2 | f | D1 | D2 | ||
6.4/10.0 | 10 | 88 | 37 | 100 | 52 | M27×1.5 | 19 | 3 | 24.8 | 14 |
15 | 115 | 50 | 125 | 56 | M36×2 | 26 | 4 | 33.0 | 22 | |
20 | 138 | 61 | 130 | 60 | M39×2 | 27 | 36.0 | 25 | ||
25 | 148 | 63 | 145 | 64 | M48×2 | 30 | 45.0 | 32 | ||
32 | 168 | 73 | 160 | 75 | M56×2 | 32 | 53.0 | 38 | ||
Type B
PN (MPa) | DN (mm) | Structure dimension | Thread joint | |||||
L | L1 | L2 | H | D | L2 | f | ||
16.0/20.0 | 10 | 86 | 36 | 100 | 52 | M27×1.5 | 18 | 3 |
15 | 105 | 45 | 120 | 56 | M36×2 | 21 | 4 | |
20 | 128 | 56 | 130 | 60 | M39×2 | 22 | ||
25 | 138 | 58 | 145 | 64 | M48×2 | 25 | ||
32 | 158 | 68 | 160 | 75 | M56×2 | 27 | ||
