CB/T315 Bronze Angle Throttle Valve
Materials of main parts
Body Material: Cast aluminum bronze
Disc Material: Aluminum bronze
Stem Material: Aluminum bronze
Overview
Application: This CB/T315 Bronze Angle Throttle Valve is designed for marine applications involving sea water, fresh water, t≤300℃ steam, lubricant oil, fuel oil.
Material Specification:
Parts Name | Material Name | Material Marks |
|---|---|---|
Body, Cover | Cast-aluminium bronze | ZCuAl9Mn2 |
Disc | Aluminium bronze | QAl9-2 |
Stem | Aluminium bronze | QAl9-2 |
Technical Specifications:
Model: CB/T315 Bronze Angle Throttle Valve
Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Suitable Media |
|---|---|---|
4.0 | 10 ~ 25 | Fresh water, Lubricant oil, Fuel oil, steam of 300 °C and under. |

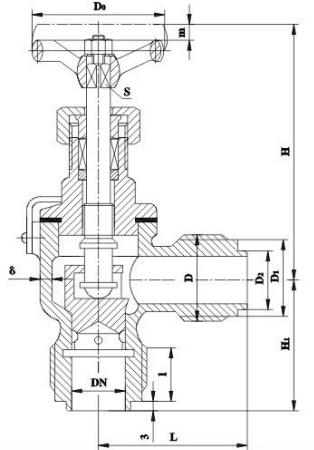

Dimensions(mm)
DN (mm) | Structure dimension | Thickness | Thread joint dimension | Hand wheel | Lift range m | Weight (kg) | ||||||
L | H1 | H | D | L | d1 | d2 | D0 | S | ||||
10 | 53 | 49 | 139 | 6 | M27×1.5 | 16 | 24.8 | 14 | 80 | 8 | 10 | 1.18 |
15 | 58 | 58 | 148 | M36×2 | 22 | 33 | 22 | 80 | 8 | 13 | 1.40 | |
20 | 64 | 64 | 156 | M39×2 | 23 | 36 | 25 | 100 | 9 | 15 | 1.92 | |
25 | 72 | 72 | 176 | M48×2 | 26 | 45 | 32 | 120 | 11 | 18 | 2.67 | |
