CB/T310 Marine Bronze Female Thread Globe Lift Check Valve
Materials of main parts
Body Material: Cast Tin Bronze
Disc Material: Cast Tin Bronze
Cover Material: Cast Tin Bronze
Overview
Application: This CB/T310 Marine Bronze Female Thread Globe Lift Check Valve is designed for marine applications involving sea water, fresh water, t≤300℃ steam, lubricant oil, fuel oil.
Material Specification:
Parts Name | Material Name | Material Marks |
|---|---|---|
Body | Cast tin bronze | ZCuSn10Zn2 or ZCuSn5Pb5Zn5 |
Disc | Cast tin bronze | ZCuSn10Zn2 or ZCuSn5Pb5Zn5 |
Cover | Cast tin bronze | ZCuSn10Zn2 or ZCuSn5Pb5Zn5 |
Technical Specifications:
Model: CB/T310 Marine Bronze Female Thread Globe Lift Check Valve
Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Suitable Media |
|---|---|---|
1.6 | 15 ~ 50 | Fresh water, Lubricant oil, Fuel oil, sea water steam of 300 ℃ and under. |

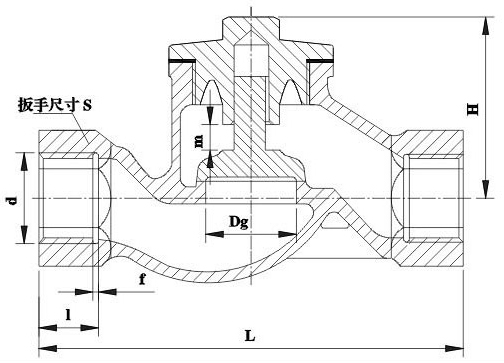

Fundamental dimensions:
DN/mm | Structure dimension | Thread joint | Lift range/m | Weight | ||||
L/mm | H/mm | d/mm | l/mm | f/mm | S/mm | m | kg | |
15 | 84 | 46 | G1/2 | 14 | 3 | 27 | 5 | 0.25 |
20 | 95 | 52 | G3/4 | 16 | 32 | 6 | 0.60 | |
25 | 110 | 57 | G1 | 18 | 4 | 41 | 7 | 0.85 |
32 | 130 | 64 | G1 1/4 | 20 | 50 | 9 | 1.49 | |
40 | 150 | 72 | G1 1/2 | 22 | 60 | 12 | 2.26 | |
50 | 180 | 80 | G2 | 24 | 70 | 15 | 3.42 | |
