CB/T 4480-2017 Marine Stainless Steel Ball Valve

Item	Description
Product Name	GB/T 4480-2017 Marine Stainless Steel Ball Valve
Certificates	ABS, LR, BV, DNV, RINA, CCS
FOB Price	Get Latest Price Now
Warranty	12 months (unless otherwise specified)
Place of Origin	China

Overview

1. SCOPE

This standard specifies the classification, marking, requirements, test methods, inspection rules, marking, packaging, and storage of stainless steel ball valves for ship use (hereinafter referred to as "ball valves"), where flange connection dimensions comply with CB/T 4196-2011, GB/T 2501-2010, and threaded connection dimensions comply with GB/T 7306.2-2000.
This standard applies to the design, manufacture, and acceptance of ship piping ball valves with nominal diameters from DN 15 to DN 150 and nominal pressures from PN 6 to PN 40, used for fresh water, seawater, oil, air, and acid/alkali corrosive liquids at temperatures not exceeding 150°C.

2. NORMATIVE REFERENCES

The following documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition (including all amendments) applies.
GB/T 600-2008 - General technical requirements for ship piping valves
GB/T 1184-1996 - Geometrical tolerances - Unindicated tolerance values
GB/T 1804-2000 - General tolerances - Tolerances for linear and angular dimensions without individual tolerance indications
GB/T 1958 - Geometrical product specifications (GPS) - Geometrical tolerance verification
GB/T 2501-2010 - Ship flange connection dimensions and sealing surfaces
GB/T 3032 - Marking of ship piping accessories
GB/T 7306.2-2000 - 55° sealing pipe threads - Part 2: Taper internal threads and taper external threads
GB/T 12230-2005 - General purpose valves - Technical specifications for stainless steel castings
CB/T 4196-2011 - Ship flange connection dimensions and sealing surfaces

3. CLASSIFICATION AND MARKING

3.1 TYPE

Ball valves are divided into the following six types according to end connection:
a) Type A: Straight-through ball valve with flange connection dimensions and sealing surfaces per CB/T 4196-2011;
b) Type AS: Straight-through ball valve with flange connection dimensions and sealing surfaces per GB/T 2501-2010;
c) Type B: Three-way ball valve with flange connection dimensions and sealing surfaces per CB/T 4196-2011;
d) Type BS: Three-way ball valve with flange connection dimensions and sealing surfaces per GB/T 2501-2010;
e) Type C: Internally threaded connection ball valve with connection dimensions per GB/T 7306.2-2000;
f) Type D: Externally threaded connection three-way ball valve with connection dimensions per GB/T 7306.2-2000.

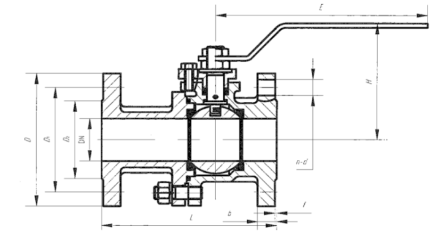

DRAWING

STRUCTURE AND BASIC DIMENSIONS

Nominal Pressure PN	Nominal Size DN	Flange Connection Dimensions								Structural Dimensions			Valve Body Wall Thickness	Mass
		D	D1	D2	n	d	Th.	b	f	H	L	E	mm	Type A kg	Type B kg
6, 10	20							11		83	117	165	3.0	2.9	4.0
	25	Per PN25						12		89	127		3.5	4.3	7.0
	32							13		95	140		4.5	7.2	11.5
	40									110	165	200	4.5	9.8	14.5
	50									118	178		5.0	11.1	19.5
	65	135	123	104	6					134	190	320	5.0	14.0	23.5
	80	170	138	118	8	15	M14			145	203		5.5	20.5	33.5
	100	190	158	138						165	229	400	6.0	34.0	47.5
	125	215	183	164	10					195	356	550	6.5	56.0	74.5
	150	240	208	190	12					220	394		6.5	94.0	105.0
16	20							11		83	117	165	3.5	2.9	4.0
	25	Per PN25						12		89	127		4.0	4.3	7.0
	32							13		95	140		5.0	7.2	11.5
	40									110	165	200	5.0	9.8	14.5
	50							15		118	178		5.5	11.1	19.5
	65									134	190	320	5.5	14.0	24.5
	80							16		145	203		6.0	20.5	34.5
	100									165	229	400	6.5	34.5	48.5
	125	225	187	168	10	21	M20	18		195	356	550	7.0	57.0	75.5
	150	255	217	196	12					220	394		7.0	95.0	106.0
25	20	95	69	48		4	13	M12	11		83	152	165	3.5	2.9	4.5
	25	105	73	56					12	89	165		4.5	4.3	7.5
	32	115	83	64						95	178		5.0	7.2	12.5
	40	125	93	74	6	15	M14	13		110	190	200	5.0	9.8	17.5
	50	135	103	84						118	216		6.0	11.1	23.5
	65	170	132	110	8			15		134	241	320	6.0	14.0	28.5
	80	185	147	126		17	M16			145	283		6.5	20.5	38.5
	100	205	167	146	10					165	305	400	7.0	35.2	51.5
	125	240	196	172		21	M20	19		195	381	550	7.5	58.0	82.0
	150	270	226	200	12					220	403		7.5	96.0	109.0

3.3.3 The structure and basic dimensions of Type AS ball valves with PN 6, PN 10, PN 16, PN 25 shall be as shown in Figure 1 and Table 3.
3.3.4 The structure and basic dimensions of Type BS ball valves with PN 6, PN 10, PN 16, PN 25 shall be as shown in Figure 2 and Table 3.

TABLE 3 - BASIC DIMENSIONS OF TYPE AS AND BS BALL VALVES (Unit: mm)

Nominal Pressure PN	Nominal Size DN	Flange Connection Dimensions								Structural Dimensions			Valve Body Wall Thickness	Mass
		D	D1	D2	n	d	Th.	b	f	H	L	E	mm	Type AS kg	Type BS kg
6	15	80	55	40				12		80	108	165	3.0	2.1	3.3
	20	90	65	50						83	117		3.0	2.9	3.5
	25	100	75	60	4	11	M10	2		89	127		3.5	4.4	6.5
	32	120	90	70				14		95	140		4.5	7.3	10.5
	40	130	100	80		14	M14			110	165	200	4.5	9.9	13.5
	50	140	110	90					3	118	178		5.0	11.1	18.5
	65	160	130	110				16		134	190	320	5.0	14.0	22.5
	80	190	150	128						145	203		5.5	20.6	32.5
	100	210	170	148		18	M16			165	229	400	6.0	33.2	46.5
	125	240	200	178	8			18		195	356	550	6.5	57.0	72.5
	150	265	225	202						220	394		6.5	95.0	103.0
10	15									80	108	165	3.0	2.1	4.0
	20								2	83	117		3.0	3.0	5.0
	25	Per PN40 Connection Dims								89	127		3.5	4.5	7.0
	32									95	140		4.5	7.4	11.5
	40									110	165	200	4.5	10.0	14.5
	50									118	178		5.0	11.2	19.5
	65								3	134	190	320	5.0	14.1	25.5
	80	Per PN16 Connection Dims								145	203		5.5	20.8	36.5
	100									165	229	400	6.0	34.1	51.5
	125									195	356	550	6.5	57.2	77.5
	150									220	394		6.5	95.2	108.5
16	15									80	108	165	3.0	2.1	4.0
	20								2	83	117		3.5	3.0	5.0
	25	Per PN40 Connection Dims								89	127		4.0	4.5	7.0
	32									95	140		5.0	7.4	11.5
	40									110	165	200	5.0	10.0	14.5
	50									118	178		5.5	11.2	19.5
	65	185	145	122	8	18	M16	18	3	134	190	320	5.5	14.1	25.5
	80	Per PN40 Connection Dims								145	203		6.0	20.8	36.0
	100	220	180	158		18		20		165	229	400	6.5	35.1	51.5
	125	250	210	188	8		M20	22		195	356	550	7.0	57.2	77.5
	150	285	240	212		22				220	394		7.0	95.2	108.5
25	15								2	80	108	165	3.0	2.1	5.0
	20	Per PN40 Connection Dims								83	152		3.5	3.0	8.0
	25									89	165		4.5	4.5	12.5
	32									95	170		5.0	7.4	13.0
	40									110	190	200	5.0	10.0	19.0
	50									118	216		6.0	11.2	27.0
	65								3	134	241	320	6.0	14.1	33.0
	80									145	283		6.5	20.8	40.0
	100									165	305	400	7.0	35.6	53.0
	125									195	381	550	7.5	57.3	86.0
	150									220	403		7.5	95.3	113.0

3.3.5 The structure and basic dimensions of Type A ball valves with PN 40 shall be as shown in Figure 3 and Table 4.
3.3.6 The structure and basic dimensions of Type B ball valves with PN 40 shall be as shown in Figure 4 and Table 4.

[Figure 3: PN40 Type A, AS Ball Valve Diagram]
[Figure 4: PN40 Type B, BS Ball Valve Diagram]

TABLE 4 - BASIC DIMENSIONS OF TYPE A AND B BALL VALVES WITH PN 40 (Unit: mm)

Nominal Pressure PN	Nominal Size DN	Flange Connection Dimensions								Structural Dimensions			Valve Body Wall Thickness	Mass
		D	D1	D2	n	d	Th.	b	f	H	L	E	mm	Type A kg	Type B kg
40	20	105	73	58	35		13	M12	13		83	152	165	4.0	4.3	5.0
	25	115	83	66	42	58			15		89	165		5.0	5.1	8.0
	32	125	93	74	50	66	6	14	M14	17		95	178		5.0	8.0	12.5
	40	145	107	84	60	76				19	110	190	200	5.0	11.1	19.2
	50	155	117	96	72	88		17	M16	20		118	216		6.0	12.2	26.5
	65	175	137	118	94	110				18	134	241	320	6.5	14.6	32.2
	80	190	152	130	105	121	8				145	283		7.0	21.0	39.2
	100	225	181	157	128	150				21	165	305	400	7.5	35.5	52.0
	125	250	206	182	154	176		21	M20	24		195	381	550	9.0	58.5	83.0
	150	280	236	212	182	204	12				220	403		9.0	97.0	109.0

3.3.7 The structure and basic dimensions of Type AS ball valves with PN 40 shall be as shown in Figure 3 and Table 5.
3.3.8 The structure and basic dimensions of Type BS ball valves with PN 40 shall be as shown in Figure 4 and Table 5.

TABLE 5 - BASIC DIMENSIONS OF TYPE AS AND BS BALL VALVES WITH PN 40 (Unit: mm)

Nominal Pressure PN	Nominal Size DN	Flange Connection Dimensions								Structural Dimensions			Valve Body Wall Thickness	Mass
		D	D1	D2	n	d	Th.	b	f	H	L	E	mm	Type AS kg	Type BS kg
40	15	95	65	45	28	40		14	M12	16		80	140	165	4.0	2.1	4.0
	20	105	75	58	35	51						83	152		4.0	3.0	5.2
	25	115	85	68	42	58	4			18		89	165		5.0	4.5	8.2
	32	140	100	78	50	66		18	M16			95	178		5.0	7.4	13.0
	40	150	110	88	60	76				18		110	190	200	5.0	10.0	19.0
	50	165	125	102	72	88	4					118	216		6.0	11.2	27.0
	65	185	145	122	94	110				20		134	241	320	6.5	14.1	33.0
	80	200	160	138	105	121		18				145	293		7.0	20.8	40.0
	100	235	190	162	128	150	8	22	M20		24	165	305	400	7.5	35.2	53.0
	125	270	220	188	154	176		26	M24	26		195	381	550	9.0	57.3	86.0
	150	300	250	218	182	204		28				220	403		9.0	95.3	113.0

3.3.9 The structure and basic dimensions of Type C ball valves shall be as shown in Figure 5 and Table 6.

[Figure 5: Type C Ball Valve Diagram]

TABLE 6 - BASIC DIMENSIONS OF TYPE C BALL VALVES (Unit: mm)

Nominal Pressure PN	Nominal Size DN	Threaded Connection Dimensions		Structural Dimensions			Valve Body Wall Thickness	Mass
		Rc	L1	L	H	E	mm	kg
6, 10	15	Rc1/2	13.5	68	55	130	3.0	1.9
	20	Rc3/4	14.0	78	58		3.5	2.6
	25	Rc1	17.5	86	65	160	3.0	6.1
	32	Rc1 1/4	18.0	100	71	190	4.5	6.8
	40	Rc1 1/2	18.5	106	86		4.5	7.5
	50	Rc2	19.5	130	94		5.0	8.4
16	15	Rc1/2	13.5	68	55	130	3.0	1.9
	20	Rc3/4	14.0	78	58		3.5	2.6
	25	Rc1	17.5	86	65	160	4.0	6.2
	32	Rc1 1/4	18.0	100	71		5.0	7.0
	40	Rc1 1/2	18.5	106	86	190	5.0	7.8
	50	Rc2	19.5	130	94		5.5	8.6
25	15	Rc1/2	13.5	68	55	130	3.0	1.9
	20	Rc3/4	14.0	78	58		3.5	2.9
	25	Rc1	17.5	86	65	160	4.5	6.5
	32	Rc1 1/4	18.0	100	71		5.0	7.0
	40	Rc1 1/2	18.5	106	86	190	5.0	7.8
	50	Rc2	19.5	130	94		6.0	9.0
40	15	Rc1/2	13.5	68	55	130	4.0	2.0
	20	Rc3/4	14.0	78	58		4.0	3.2
	25	Rc1	17.5	86	65	160	5.0	6.8
	32	Rc1 1/4	18.0	100	71		5.0	7.0
	40	Rc1 1/2	18.5	106	86	190	5.0	7.8
	50	Rc2	19.5	130	94		6.0	9.0

3.3.10 The structure and basic dimensions of Type D ball valves shall be as shown in Figure 6 and Table 7.

[Figure 6: Type D Ball Valve Diagram]

TABLE 7 - BASIC DIMENSIONS OF TYPE D BALL VALVES (Unit: mm)

Nominal Pressure PN	Nominal Size DN	Threaded Connection Dimensions			Structural Dimensions				Valve Body Wall Thickness	Mass
		D	D1	L1	L	L2	L3	H	mm	kg
<=40	10	M27×1.5	20	13	110	100	41	56	58.0	4.0	2.2
	15	M30×1.5	24	14	110	105	43	60	60.5	4.0	2.6
	20	M36×1.5	30	16	110	121	50	46	67.5	4.0	4.1
	25	M42×1.5	35	20	160	135	55	58	70.0	5.0	5.0
	32	M52×1.5	40	22	180	160	64	67	85.0	5.0	8.7
