CB/T 3594 Marine Air Vent Head

CB/T 3594 Marine Air Vent Head

Item

Description

Product Name

CB/T 3594 Marine Air Vent Head

Certificates

ABS, LR, BV, DNV, RINA, CCS

FOB Price

Get Latest Price Now

Warranty

12 months (unless otherwise specified)

Place of Origin

China


Overview

1. SCOPE

This standard applies to the oil and water tank air pipelines for ships and offshore drilling platforms. This standard was drafted by Guangzhou Shipyard.

2. TABLES

TABLE 1 - TYPE AND FLANGE DIMENSIONS

TypeNameFlange Connection Dimensions
ACap Type Air Pipe HeadGB 569
ASCap Type Air Pipe HeadGB 2501
CSounding and Vent Type Air Pipe HeadGB 569
CSSounding and Vent Type Air Pipe HeadGB 2501
DFloat Type Oil Tank Air Pipe HeadGB 569
DSFloat Type Oil Tank Air Pipe HeadGB 2501
EFloat Type Water Tank Air Pipe HeadGB 569
ESFloat Type Water Tank Air Pipe HeadGB 2501
FSBall Float Type Oil and Water Tank Air Pipe HeadGB 2501
TABLE 2 - BASIC PARAMETERS
TypeNameNominal Diameter DN (mm)Application Scope
A, ASCap Type Air Pipe Head50 - 250Top of oil and water tank air pipes
B, BSGooseneck Type Air Pipe Head50 - 250Top of oil and water tank air pipes
C, CSSounding and Vent Type Air Pipe Head50 - 100Sounding and venting
D, DSFloat Type Oil Tank Air Pipe Head50 - 350Top of oil tank air pipes
E, ESFloat Type Water Tank Air Pipe Head50 - 350Top of water tank air pipes
FSBall Float Type Oil and Water Tank Air Pipe Head50 - 350Top of oil and water tank air pipes


3. DIMENSIONS TABLES

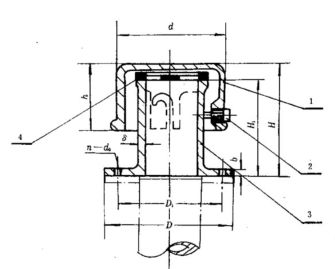

Drawing CBT 3594 Marine Air Vent Head Type A.png

TABLE 3 - BASIC DIMENSIONS FOR TYPE A AND AS (Unit: mm)

Nominal Diameter DNOverall Height HBody Height H1Wall Thickness δCover Dim. dCover Dim. hFlange DFlange D1Flange bFlange n (pcs)Flange d0Mass (Cast Iron) kgMass (Cast Steel) kg
5011085676128135103156154.084.58






140110164144.174.69
6512090680150155123146155.636.53






160130164145.736.64
80140100690180170138148157.248.24






190150184187.278.70
10016012071052001901581481511.9113.71






2101701841812.5014.30
150175130812025024020814121520.4023.40






2652252081822.4025.40
200190150613030029526415121526.4428.22






3202802281826.9328.35
250220180814035036532716141731.7135.21






37533524121836.0039.50
Note: The upper values in the Flange Connection Dimensions column are per GB 569, and the lower values are per GB 2501.












TABLE 4 - BASIC DIMENSIONS FOR TYPE C AND CS (Unit: mm)

Nominal Diameter DNStructural HStructural H1Structural DStructural RStructural δFlange D2Flange D1Flange bFlange n (pcs)Flange d0Mass (Cast Iron) kgMass (Cast Steel) kg
502808060606135103156154.105.10






140110164144.545.32
803108090807.5170138148159.019.91






190150184189.2010.11
1002708010310081901581481512.9013.81






2101701841813.1114.29
Note: The upper values in the Flange Connection Dimensions column are per GB 569, and the lower values are per GB 2501.











TABLE 6 - BASIC DIMENSIONS FOR TYPE D, DS, E, ES AND FS (Unit: mm)

Nominal Diameter DNStructural LStructural HFlange DFlange D1Flange D2Flange bFlange n (pcs)Flange d0Wall Thickness δLift hMass (Oil Tank) kgMass (Water Tank) kg
5016017013510384156156.5176.244.49



14011090164146.5176.325.02
65190200155123104146156.52210.379.16



160130110164146.52210.669.23
80225205170138118148157.52722.6019.50



190150128184187.52723.0119.97
1002452351901581381481582727.4024.40



2101701481841882729.3426.30
12529026521518316414101584433.7029.20



2402001782081884435.4630.96
15036730024020819014121595339.0234.92



2652252022081895340.9436.84
20046336729526424715121596063.7059.62



3202802582281896066.7962.71
250550460365327306161417107890.1083.20



375335312241218107893.3286.42
3006505804303863601914211085110.40106.20



4403953652412221085112.67108.47
3507706804804364102016211095121.50112.40



4904454152612221095128.02118.92
Note: The upper values in the Flange Connection Dimensions column are per GB 569, and the lower values are per GB 2501.
