CB 693 Marine Deck Stand with Universal Joint
The CB 693 Marine Deck Stand with Universal Joint is a heavy-duty, corrosion‑resistant 316 stainless steel deck mount, designed for marine and offshore use. With 360° swivel, it provides a flexible mounting solution for antennas, lights, and cameras on any boat deck. Request a quote for the CB 693 deck stand today.
Overview
APPLICATION
The CB 693 Marine Deck Stand with Universal Joint (also known as Oil Tanker Deck Control Device / Deck Stand Valve) is a specialized remote control device designed specifically for marine applications, particularly in oil tankers and deck vessels.
This device is used to remotely operate manual valves — including gate valves, globe valves, butterfly valves, and surface valves — installed at the bottom or inside cargo oil tanks. The universal joint connects to the valve rod, extending the control mechanism up to the upper deck, allowing crew members to operate valves safely from the deck level without entering the tank area.
Key Applications:
Oil tanker valve control systems
Marine cargo oil tank operations
Remote valve actuation on deck vessels
DN150–DN350 oil tanker flanged cast steel gate valves
MATERIAL SPECIFICATION
TECHNICAL SPECIFICATION
Model Designations by Square Head Size:
| Square Head Side Length | Model Marking |
|---|---|
| So = 24mm | FH2401 CB693-75 |
| So = 27mm | FH2701 CB693-75 |
| So = 32mm | FH3201 CB693-75 |
Deck controller (deck manipulator / deck steering head)
Universal joint(s)
End-joint
Middle bracket
Extension tube

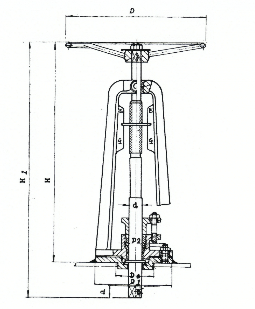

DRAWING
.png "Drawing of CB 693 Marine Deck Stand with Universal Joint (2).png")
DIMENSIONS SPECIFICATION
Deck Stand Dimensions
| So (mm) | D1 (mm) | D2 (mm) | D (mm) | S (mm) | H (mm) | H1 (mm) | d (mm) | a (mm) | d0 (mm) | Pitch | D0 (mm) | Allowed Torque (Kg-Cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 240 | 200 | 360 | 22 | 750 | 860 | 34 | 30 | 8 | 3.5 | 125 | 2900 |
| 27 | 240 | 200 | 400 | 24 | 750 | 860 | 37 | 35 | 10 | 4 | 125 | 4700 |
| 32 | 240 | 200 | 450 | 27 | 750 | 860 | 40 | 35 | 10 | 4 | 126 | 4700 |
Deck Opening Diameter: 125mm (for all sizes)
Approximate Weight:
So=24: ~35.01 kg
So=27: ~37.87 kg
So=32: ~41.36 kg
Intermediate Support Dimensions
| So (mm) | L (mm) | H (mm) | D (mm) | A (mm) | A1 (mm) | D0 (mm) | L1 (mm) | D1 (mm) | B (mm) | A (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 146 | 66 | 35 | 30 | 15 | 8 | 140 | 65 | 34 | 60 | 15 |
| 27 | 176 | 76 | 40 | 35 | 17 | 10 | 150 | 70 | 40 | 60 | 15 |
| 32 | 182 | 82 | 45 | 35 | 17 | 10 | 160 | 80 | 42 | 60 | 17 |
Frequently Asked Questions (FAQ – target “People Also Ask”)
Is the CB 693 deck stand suitable for saltwater environments?
Yes. The CB 693 deck stand is manufactured with 316 stainless steel and bronze components, making it highly resistant to saltwater corrosion. It is specifically designed for marine use on oil tankers, cargo ships, and yachts.
What is the load capacity of the CB 693 universal joint deck stand?
The load capacity depends on the square head size. For So=24mm, the maximum torque is 2900 kg-cm; for So=27mm and 32mm, it is 4700 kg-cm. This corresponds to operating valves up to DN350 under 1.5 MPa working pressure.
What are the dimensions of the CB 693 deck stand?
The overall height is 750mm, with hand wheel diameters ranging from 360mm to 450mm depending on the model. Full dimension tables for the universal joint and intermediate supports are available in our data sheet – just ask!
How do I choose the correct CB 693 model?
Select the square head side length (So) that matches your valve stem. We offer So=24mm, 27mm, and 32mm. Also specify whether you prefer cast steel or stainless steel material. Our sales team can assist you in making the right choice.
Can I get a OEM or custom version of the CB 693 deck stand?
Absolutely. We are a professional CB 693 deck stand manufacturer and support OEM orders, including custom markings, special materials, and modified dimensions. Contact us with your requirements.
