CB 3192 Marine Male Thread Angle Steam Safety Valve
Materials of main parts
Body Material: Bronze
Seat Material: Stainless steel
Disc Material: Stainless steel
Overview
Application: This CB 3192 Marine Male Thread Angle Steam Safety Valve is designed for marine applications involving t≤190 ℃ steam.
Material Specification:
Parts Name | Material Name | Marks |
|---|---|---|
Body | Bronze | QA19-2 |
Valve Seat | Stainless Steel | 2Cr13 |
Disc | Stainless Steel | 2Cr13 |
Adjust Ring | Manganese Brass | HMn58-2 |
Technical Specifications:
Model: CB 3192 Marine Male Thread Angle Steam Safety Valve
| Nominal Size(mm) | Nominal Pressure kgf/cm2 (Mpa) |
| 10 | 1-2.5 (0.098-0.245) |
| >2.5-6 (0245-0.588) | |
| >6-12 (0.588-1.176) | |
| 15 | 1-2.5 (0.098-0.245) |
| >2.5-6 (0245-0.588) | |
| >6-9 (0.588-0.882) | |
| >9-12 (0.882-1.176) |

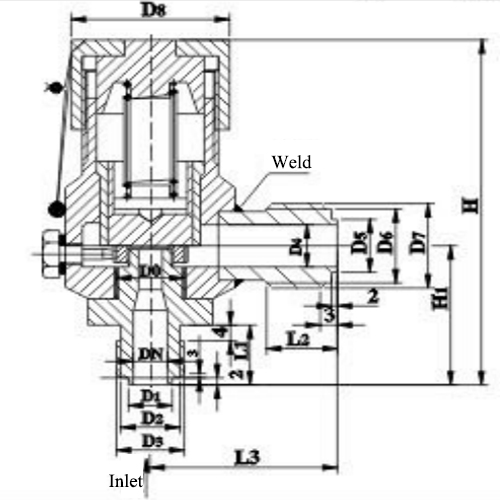

Dimensions(mm)
| nominal pressure | nominal diameter | D0 | connection dimension | structure dimension | weight (kg) | |||||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | L1 | L2 | D8 | L3 | H | H1 | ||||
| 0.1~0.25 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.47 |
| >0.25~0.6 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.57 |
| >0.6~1.2 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.47 |
| 0.1~0.25 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.90 |
| >0.25~0.6 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.91 |
| >0.6~0.9 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.92 |
| >0.9~1.2 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.93 |
