CB 312 Pressure Gauge Valve
Materials of main parts
Body Material: Cast silicon brass
Disc Material: Aluminum bronze
Stem Material: Aluminum bronze
Overview
Application: This CB 312 Pressure Gauge Valve is designed for marine applications involving sea water, fresh water, t≤400℃ steam, lubricant oil, fuel oil.
Material Specification:
Parts Name | Material Name | Material Marks |
|---|---|---|
Body | Cast silicon brass | ZCuSn16Si4 |
Stem | Aluminum bronze | QAl9-2 |
Disc | Aluminum bronze | QAl9-2 |
Technical Specifications:
Model: CB 312 Pressure Gauge Valve
Type | Nominal Pressure PN (MPa) | Nominal Diameter DN (mm) | Weight (kg) | Suitable Media |
|---|---|---|---|---|
A | 4.0 | 6 | 0.22 | Water, Air, Fuel oil, Lubricant oil, steam of 250°C and under. |
B | 10.0 | 6 | 0.60 | Water, Air, Fuel oil, Lubricant oil, steam of 250°C and under. |
B | 16.0 | 6 | 0.59 | Fresh water, Air, CO₂, Fuel oil, Lubricant oil, steam of 400°C and under. |

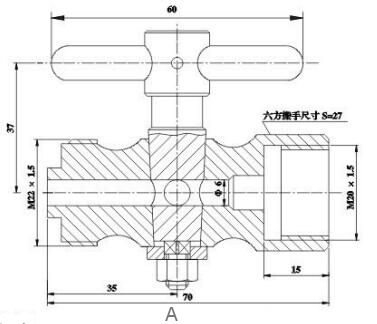

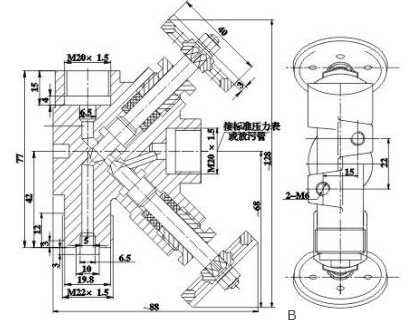

Drawing:
