CB 1153 Metal Wave Expansion Throttle

Materials of main parts

Bellows Material: Stainless steel

Steel Ring Material: Stainless steel

Flange Material: Carbon Steel

Overview

Application: This CB 1153 Metal Wave Expansion Throttle is designed for marine applications involving fresh water, sea water, lubricating oil, fuel oil.

Material Specification:

Parts Name	Material Name	Marks
Bellows, Steel Ring	Stainless Steel Stainless Steel	00Cr17Ni14Mo2 (Type A, AS)00Cr18Ni11Ti (Type A, AS)
Flange	Carbon Steel	Q235-A

Technical Specifications:

Model: CB 1153 Metal Wave Expansion Throttle

Type	Nominal Pressure (MPa)	Nominal Diameter (mm)	Suitable Medium
A, AS	0.4	300 ~ 500	Fresh water, Sea water, Oil, Steam at t≤250°C
A, AS	0.6, 1.0, 1.6	50 ~ 500	Fresh water, Sea water, Oil, Steam at t≤250°C
B, BS	0.6, 1.0, 1.6	50 ~ 500	Fresh water, Sea water, Oil, Steam at t≤250°C

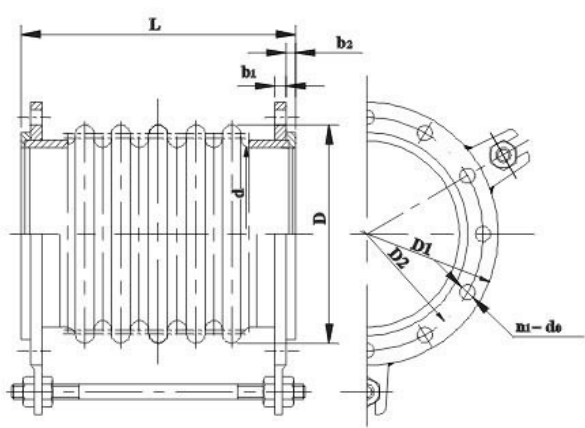

Dimensions(mm)

Table 1: Basic Dimensions for PN0.6 (6 kgf/cm²) Bellows Expansion Joint

Nominal Diameter DN	Outside Diameter D (mm)	Installation Length L (mm)	Number of Convolutions n	Axial Stiffness (N/mm)	Effective Area (cm²)
32	38	68	2	108	11
40	45	68	2	98	15
50	57	72	2	88	24
65	73	76	2	78	37
80	89	80	2	69	54
100	108	84	2	59	79
125	133	88	2	49	113
150	159	92	2	44	162
200	219	96	2	39	280
250	273	100	2	34	430
300	325	104	2	29	620

Table 2: Basic Dimensions for PN1.0 (10 kgf/cm²) Bellows Expansion Joint

Nominal Diameter DN	Outside Diameter D (mm)	Installation Length L (mm)	Number of Convolutions n	Axial Stiffness (N/mm)	Effective Area (cm²)
32	38	72	2	196	11
40	45	72	2	177	15
50	57	76	2	157	24
65	73	80	2	137	37
80	89	84	2	118	54
100	108	88	2	98	79
125	133	92	2	88	113
150	159	96	2	78	162
200	219	100	2	69	280
250	273	104	2	59	430
300	325	108	2	49	620
