Bronze Gate Valve Class 150
High-quality Class 150 bronze gate valve conforming to ASME B16.5 standard. Bronze body provides outstanding anti-rust and anti-corrosion performance. Class 150 pressure rating fits low-medium pressure water, mild gas and low-pressure steam. Perfect for ship, construction and heating system fluid shut-off control.
Overview
Application:
This Class 150 bronze gate valve meets low-to-medium pressure piping requirements with reliable sealing performance.
It is widely used for water, mild gas and low-pressure steam pipelines in marine, plumbing, HVAC and general industrial systems.
Material Specification:
No | Part | Material |
1 | body | Bronze |
2 | Bonnet | Bronze Forged Brass |
3 | Disc | Bronze Or Brass |
4 | Union Bonnet Nut | Bronze Or Brass |
5 | Packing Gland | Brass |
6 | Bonnet Nut | Bronze Forged Brass |
7 | Stem | Brass |
8 | Packing | Tefion |
9 | Hex Nut | Brass |
10 | Handle | Cast Iron |
11 | Name Plate | Aluminum |
Technical Specification:
Model: ANSI Bronze Gate Valve
Hydrostatic Test Pressure(kgf/cm2):
Rating | Psi | Kgf/cm2 |
Shell | 350 | 24.1 |
Seat | 225 | 15.5 |

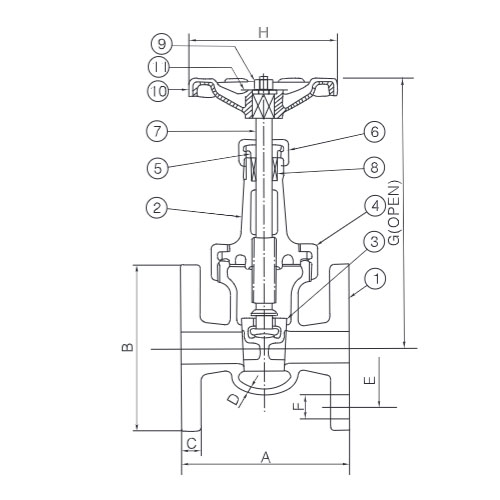

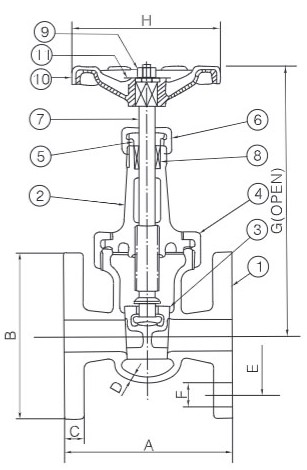

Drawings:
Demensions:
Valve Size | ||||||||
In | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
Mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
A End To End | ||||||||
In | 3.5 | 3.88 | 4.25 | 4.5 | 4.69 | 5.5 | 6.5 | 7.5 |
Mm | 88.9 | 98.4 | 1.8 | 114.3 | 119.1 | 139.7 | 165.1 | 190.5 |
B Out Dia | ||||||||
In | 3.5 | 3.88 | 4.25 | 4.5 | 4.69 | 5.5 | 6.5 | 7.5 |
Mm | 88.9 | 98.4 | 1.8 | 114.3 | 119.1 | 139.7 | 165.1 | 190.5 |
C Fig Thick | ||||||||
In | 0.31 | 0.34 | 0.38 | 0.41 | 0.44 | 0.5 | 0.56 | 0.63 |
Mm | 7.9 | 8.7 | 9.5 | 10.3 | 11.1 | 12.7 | 14.3 | 15.9 |
D Wall Thick | ||||||||
In | 0.118 | 0.138 | 0.157 | 0.177 | 0.217 | 0.238 | ||
Mm | 3.0 | 3.5 | 4.0 | 4.5 | 5.5 | 6.0 | ||
E P.c Dia | ||||||||
In | 2.38 | 2.75 | 3.13 | 3.5 | 3.88 | 4.75 | 5.5 | 6.0 |
Mm | 60.3 | 69.9 | 79.4 | 83.9 | 98.4 | 120.7 | 139.7 | 152.4 |
F Size Of Holes | ||||||||
In | 4-0.63 | 4-0.75 | ||||||
Mm | 4-15.9 | 4-19.0 | ||||||
G Height | ||||||||
In | 6.9 | 7.8 | 8.7 | 9.8 | 11.4 | 12.6 | 13.8 | 15.0 |
Mm | 175 | 200 | 220 | 250 | 290 | 320 | 350 | 380 |
H Handwheel | ||||||||
In | 3.15 | 4.0 | 4.0 | 4.92 | 4.92 | 5.51 | 6.3 | 7.09 |
Mm | 80 | 100 | 100 | 125 | 125 | 140 | 160 | 180 |
