Bronze Angle Valve Class 150

Our Class 150 bronze angle valve complies with ASME B16.5 standard. The bronze body resists rust and seawater corrosion, while the angled design reduces pipeline elbow installation costs. Suitable for water, hot water and low-pressure gas media for ship and construction systems.

Overview

Application:

Class 150 bronze angle valves are ideal for low-pressure water, hot water and steam systems.

Widely used in marine piping, building plumbing, HVAC and general industrial pipelines.

Material specification:

No	Part	Material
1	body	Bronze
2	Bonnet	Bronze Forged Brass
3	Disc	Bronze Or Brass
4	Union Bonnet Nut	Bronze Or Brass
5	Packing Gland	Brass
6	Bonnet Nut	Bronze Forged Brass
7	Stem	Brass
8	Packing	Tefion
9	Hex Nut	Brass
10	Handle	Cast Iron
11	Name Plate	Aluminum

Technical Specification:

Model: ANSI Bronze Angle Valve

Hydrostatic Test Pressure(kgf/cm2):

Rating	Psi	Kgf/cm²
Shell	350	24.1
Seat	225	15.5

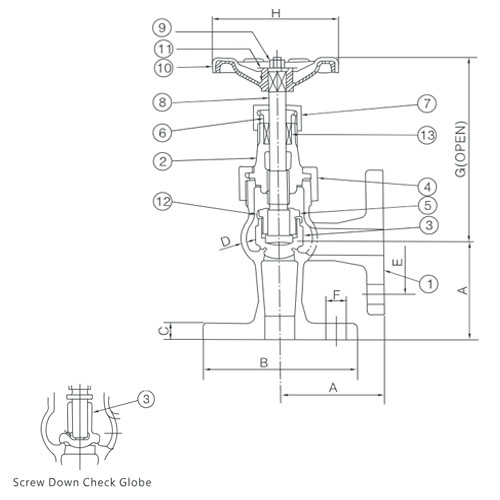

Drawings:

Demensions:

Valve Size
In	1/2	3/4	1	1¹/4	1¹/2	2	2¹/2	3
Mm	15	20	25	32	40	50	65	80
A End To End
In	4.0	4.75	5.38	6.0	7.25	8.0	9.0	10.0
Mm	101.6	120.7	136.5	152.4	184.2	203.2	228.6	254
B Out Dia
In	3.75	4.63	4.88	5.25	6.13	6.5	7.5	8.25
Mm	95.3	117.5	123.8	133.4	155.6	165.1	190.5	209.6
C Fig Thick
In	0.5	0.53	0.59	0.63	0.69	0.75	0.81	0.88
Mm	12.7	13.5	15.1	15.9	17.5	19.0	20.6	22.2
D Wall Thick
In	0.157			0.197	0.236		0.256	0.276
Mm	4.0			5.0	6.0		6.5	7.0
E P.c Dia
In	2.63	3.25	3.5	3.88	4.5	5.0	5.88	6.63
Mm	66.7	82.6	88.9	98.4	114.3	127.0	149.2	168.3
F Size Of Holes
In	4-0.63	4-0.75			4-0.88	8-0.75	8-0.88
Mm	4-15.9	4-19.0			4-22.2	8-19.0	8-22.2
G Height
In	5.1	5.5	6.3	6.7	7.5	8.3	9.3	10.2
Mm	130	140	160	170	160	210	235	260
H Handwheel
In	3.15	4.0	4.0	4.92	4.92	5.51	6.3	7.09
Mm	80	100	100	125	125	140	160	180
