ANSI Bronze Globe Valve
Materials of main parts
Body Material: Bronze
Disc Material: Bronze/Forged Brass
Stem Material: Brass
Overview
Application:This ANSI Bronze Globe Valve is designed for marine applications involving sea water, water, steam and oils.
Material Specification:
No | Parts | Material |
|---|---|---|
1 | Body | Bronze |
2 | Bonnet | Bronze/Forged Brass |
3 | Disc | Bronze/Forged Brass |
4 | Union Bonnet Nut | Bronze/Forged Brass |
5 | Disc Nut | Brass |
6 | Packing Gland | Brass |
7 | Bonnet Nut | Bronze/Forged Brass |
8 | Stem | Brass |
9 | Hex Nut | Brass |
10 | Handle | Cast Iron |
11 | Name Plate | Aluminum |
12 | Lock Plate | Brass Rod |
13 | Packing | Tefion |
Technical Specifications:
Model:ANSI Bronze Globe Valve
150lb Hydrostatic Test Pressure (kgf/cm²):
Rating
Psi
Kgf/cm²
Shell
350
24.1
Seat
225
15.5
300lb Hydrostatic Test Pressure (kgf/cm²):
Rating
Psi
Kgf/cm²
Shell
700
51.7
Seat
450
34.5

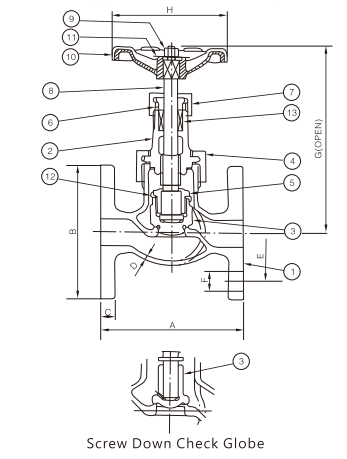

Drawings:
150lb Dimensions(mm)
Valve Size | In | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|
Mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
A End To End | In | 3.31 | 3.75 | 4.19 | 4.56 | 5.31 | 6.0 | 6.75 | 7.94 |
Mm | 84.1 | 95.3 | 106.4 | 115.9 | 134.9 | 152.4 | 171.45 | 201.6 | |
B Out Dia | In | 3.5 | 3.88 | 4.25 | 4.63 | 5.0 | 6.0 | 7.0 | 7.5 |
Mm | 88.9 | 99.4 | 108 | 117.5 | 127 | 152.4 | 177.8 | 190.5 | |
C Fig Thick | In | 0.31 | 0.34 | 0.38 | 0.41 | 0.44 | 0.5 | 0.56 | 0.63 |
Mm | 7.9 | 8.7 | 9.5 | 10.3 | 11.1 | 12.7 | 14.3 | 15.9 | |
D Wall Thick | In | 0.118 | 0.138 | 0.157 | 0.177 | 0.217 | 0.238 | ||
Mm | 3.0 | 3.5 | 4.0 | 4.5 | 5.5 | 6.0 | |||
E P.c Dia | In | 2.38 | 2.75 | 3.13 | 3.5 | 3.88 | 4.75 | 5.5 | 6.0 |
Mm | 60.3 | 69.9 | 79.4 | 83.9 | 98.4 | 120.7 | 139.7 | 152.4 | |
F Size Of Holes | In | 4-0.63 | 4-0.75 | ||||||
Mm | 4-15.9 | 4-19 | |||||||
G Height | In | 5.1 | 5.5 | 6.3 | 6.7 | 7.5 | 8.3 | 9.3 | 10.2 |
Mm | 130 | 140 | 160 | 170 | 190 | 210 | 235 | 260 | |
H Handwheel | In | 3.15 | 4.0 | 4.0 | 4.92 | 4.92 | 5.51 | 6.3 | 7.09 |
Mm | 80 | 100 | 100 | 125 | 125 | 140 | 160 | 180 | |
300lb Dimensions(mm)
Valve Size | In | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|
Mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
A End To End | In | 4.0 | 4.75 | 5.38 | 6.0 | 7.25 | 8.0 | 9.0 | 10.0 |
Mm | 101.6 | 120.7 | 136.5 | 152.4 | 184.2 | 203.2 | 228.6 | 254 | |
B Out Dia | In | 3.75 | 4.63 | 4.88 | 5.25 | 6.13 | 6.5 | 7.5 | 8.25 |
Mm | 95.3 | 117.5 | 123.8 | 133.4 | 155.6 | 165.1 | 190.5 | 209.6 | |
C Fig Thick | In | 0.5 | 0.53 | 0.59 | 0.63 | 0.69 | 0.75 | 0.81 | 0.88 |
Mm | 12.7 | 13.5 | 15.1 | 15.9 | 17.5 | 19.0 | 20.6 | 22.2 | |
D Wall Thick | In | 0.157 | 0.197 | 0.236 | 0.236 | 0.256 | 0.276 | ||
Mm | 4.0 | 5.0 | 6.0 | 6.0 | 6.5 | 7.0 | |||
E P.c Dia | In | 2.63 | 3.25 | 3.5 | 3.88 | 4.5 | 5.0 | 5.88 | 6.63 |
Mm | 66.7 | 82.6 | 88.9 | 98.4 | 114.3 | 127.0 | 149.2 | 168.3 | |
F Size Of Holes | In | 4-0.63 | 4-0.75 | 4-0.88 | 8-0.75 | 8-0.88 | |||
Mm | 4-15.9 | 4-19.0 | 4-22.2 | 8-19.0 | 8-22.2 | ||||
G Height | In | 5.1 | 5.5 | 6.3 | 6.7 | 7.5 | 8.3 | 9.3 | 10.2 |
Mm | 130 | 140 | 160 | 170 | 160 | 210 | 235 | 260 | |
H Handwheel | In | 3.15 | 4.0 | 4.0 | 4.92 | 4.92 | 5.51 | 6.3 | 7.09 |
Mm | 80 | 100 | 100 | 125 | 125 | 140 | 160 | 180 | |
