Angel Type Self Closig Valves
Our angle type self-closing valve is a spring-loaded marine valve designed to automatically return to the closed position after manual operation. The 90° angle body configuration allows for easy installation in compact piping layouts, while the robust bronze construction provides excellent corrosion resistance in seawater and harsh marine environments.
Overview
Application : Angle type self-closing valves are essential components in marine and offshore piping systems where automatic shut-off is required for safety, environmental protection, or operational efficiency. Their spring-return design ensures the valve always fails closed, making them ideal for discharge and drain applications.
Material Specification:
NO. | Name | Materials |
1 | Body | B62/A 126 WCB |
2 | stem | B62/326 |
3 | Spring | SWP - A |
4 | Bonnet | B62/A 126 WCB |
5 | Disc | B62 |
6 | Plug | B62 |
7 | Sealing ring | PTFE |
8 | Packing | PTFE |
Technical Specification:
Design and manufacture:
Face to face: JIS B2002
Flange ends:ASME B16.5
Test & Inspection:API 598
Performance Specification:
Nominal Pressure | 150LB |
Strength test | 3.0MPa |
Back seal test | 2.2MPa |
Hydraulic seal test | |
Gas seal test | 0.6MPa |
Suitable temperature | 180℃ |
For media | Oil |

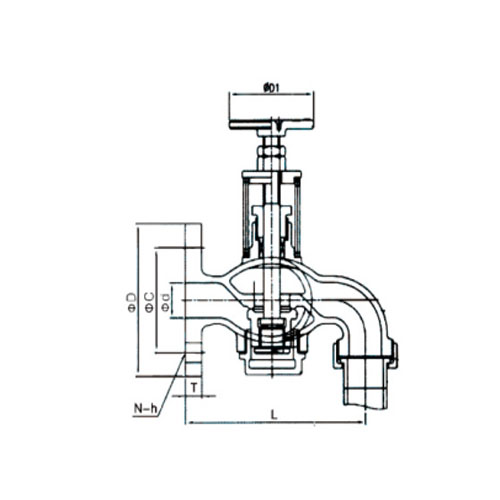

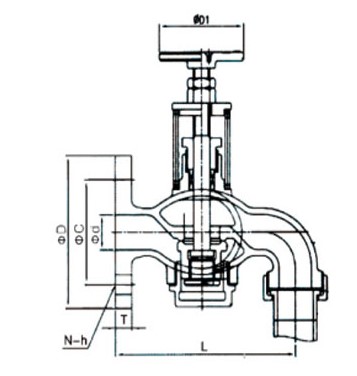

Drawing:
Dimensions：
NPS | DN | D | C | D2 | T | N - H | L | H |
1/2” | 15 | 89 | 60.5 | 35 | 10 | 4 - 15 | 108 | 196 |
1” | 25 | 108 | 79.5 | 51 | 11.5 | 4 - 15 | 127 | 220 |
1-1/2” | 40 | 127 | 98.5 | 73 | 14.5 | 4 - 15 | 165 | 280 |
