3PC Die Forging Ball Valve
The 3PC Die Forging Ball Valve is engineered with a fire-safe design, a blow-out proof stem, and integrated anti-static devices to ensure maximum operational safety. Available in premium materials such as A105, F304, and F316, this robust 800lb valve supports NPT, socket weld (SW), and butt weld (BW) connections, making it an ideal choice for diverse media including water, steam, gas, chemicals, and petroleum.
Overview
Application:This 3 PC Die Forging Ball Valve is designed for marine applications involving Fresh water, Sewage, Sea water,Steam, Oils.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | A105, F304, F316, F304L |
| 2 | Bonnet | A105, F304, F316, F304L |
| 3 | Gasket | PTFE/RPTFE |
| 4 | Sealing ring | RPTFE/Nylon |
| 5 | Ball | 420, F304, F316, F304L |
| 6 | Thrust washer | PTFE/RPTEE |
| 7 | Stem | F6a, 304, 17-4PH, 304L |
| 8 | Packing | PTEF/Flexcble graphite |
| 9 | Bushing | 304 |
| 10 | Bolt | 304 |
| 11 | Nut | 304 |
| 12 | Hand shank | SS |
Technical Specifications:
Design and manufacture: GB/T 12237
Body wall thickness: GB/T 12224
NPT end: ASME B1.20.1;
G end: GB/T12716; RC end: GB/T7306.2
Socket weld: ASME B16.11
Butt weld: ASME B16.25, ASME B36.10M
Inspection & testing: API598

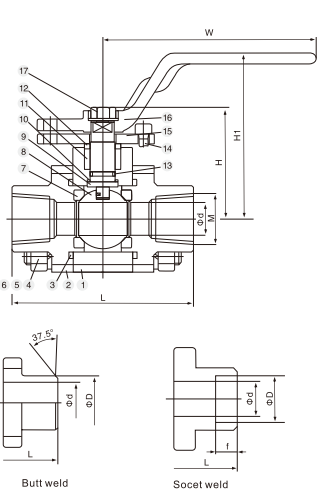

Drawing:
Dimensions:
| NPS | DN | L | D | K | f | H | W | M |
|---|---|---|---|---|---|---|---|---|
| 3/8" | 10 | 70 | 10 | 17.8 | 10 | 55 | 135 | NPT BSP G RC |
| 1/2" | 15 | 75 | 13 | 22 | 10 | 55 | 135 | |
| 3/4" | 20 | 90 | 17 | 27.3 | 13 | 55 | 135 | |
| 1" | 25 | 115 | 25 | 34 | 13 | 70 | 170 | |
| 1 1/4" | 32 | 124 | 32 | 42.8 | 13 | 78 | 210 | |
| 1 1/2" | 40 | 150 | 38 | 48.9 | 13 | 88 | 220 | |
| 2" | 50 | 150 | 50 | 61.4 | 16 | 108 | 220 | |
| 2 1/2" | 65 | 190 | 65 | 74.2 | 16 | 125 | 220 | |
| 3" | 80 | 205 | 76 | 90 | 16 | 147 | 400 | |
| 4" | 100 | 330 | 100 | 115.8 | 19 | 200 | 600 |
