2PC Forged Steel Ball Valve
Our 2PC Forged Steel Ball Valves are meticulously engineered with a fire-safe design, a blow-out proof stem, and integrated anti-static devices to ensure maximum safety and reliability. Rated for 800lb high-pressure performance, these durable valves are available in premium materials like A105, F304, and F316, offering versatile NPT, socket weld, and butt weld connections to seamlessly handle water, steam, chemicals, and petroleum.
Overview
Application:This 2PC Forged Steel Ball Valve is designed for marine applications involving Fresh water, Sewage, Sea water,Steam, Oils.
Material Specification:
NO Part Material 1 Body A105, F304, F316, F304L 2 Bonnet A105, F304, F316, F304L 3 Gasket PTFE/RPTFE 4 Sealing ring RPTFE/Nylon 5 Ball 420, F304, F316, F304L 6 Thrust washer PTFE/RPTEE 7 Stem F6a, 304, 17-4PH, 304L 8 Packing PTEF/Flexcble graphite 9 Bushing 304 10 Bolt 304 11 Nut 304 12 Hand shank SS
Technical Specifications:
Design and manufacture: GB/T 12237
Body wall thickness: GB/T 12224
NPT end: ASME B1.20.1;
G end: GB/T12716; RC end: GB/T7306.2
Socket weld: ASME B16.11
Butt weld: ASME B16.25, ASME B36.10M
Inspection & testing: API598

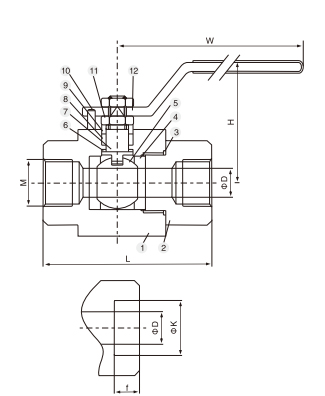

Drawing:
Dimensions:
| NPS | DN | L | D | K | f | H | W | M |
|---|---|---|---|---|---|---|---|---|
| 3/8" | 10 | 70 | 10 | 17.8 | 10 | 55 | 135 | NPT BSP G RC |
| 1/2" | 15 | 75 | 13 | 22 | 10 | 55 | 135 | |
| 3/4" | 20 | 90 | 17 | 27.3 | 13 | 55 | 135 | |
| 1" | 25 | 115 | 25 | 34 | 13 | 70 | 170 | |
| 1 1/4" | 32 | 124 | 32 | 42.8 | 13 | 78 | 210 | |
| 1 1/2" | 40 | 150 | 38 | 48.9 | 13 | 88 | 220 | |
| 2" | 50 | 150 | 50 | 61.4 | 16 | 108 | 220 | |
| 2 1/2" | 65 | 190 | 65 | 74.2 | 16 | 125 | 220 | |
| 3" | 80 | 205 | 76 | 90 | 16 | 147 | 400 | |
| 4" | 100 | 330 | 100 | 115.8 | 19 | 200 | 600 |
