2000 WOG 1PC Forged Steel Ball Valve
Our 1PC Forged Steel Ball Valve features a robust hexagonal one-piece body with a reduced bore design, delivering reliable high-pressure performance up to 2000 WOG (2000 PSI). Manufactured in strict compliance with ASME B1.20.1 for NPT threads and ASME B16.34 standards, this compact valve utilizes premium A105 or F316 materials alongside durable PTFE seals to ensure leak-free fluid control in demanding environments.rmarineapplicationsinvolvingFreshwater,Sewage,Seawater,Steam,Oils.MaterialSpecification: TechnicalSpecifications:
Overview
Application:This 2000 WOG 1PC Forged Steel Ball Valve is designed for marine applications involving Fresh water, Sewage, Sea water,Steam, Oils.
Material Specification:
| NO | Part | Material |
|---|---|---|
| 1 | Body | A105/F316 |
| 2 | Bonnet | A105/F316 |
| 3 | Seat | PTFE |
| 4 | Ball | CF8M/316 |
| 5 | Stem | 316 |
| 6 | Packing | PTFE |
| 7 | Thrust washer | PTFE |
| 8 | Packing bushing | 304 |
| 9 | Bolt | CS+Zn |
| 10 | Hand shank | CS+Zn |
| 11 | Handle plastic | Plastic |
| 12 | Gasket | PTFE |
| 13 | Spring gasket | C/S |
Technical Specifications:
1PC body Hexagon: Reduce bore
NPT: ASME B1.20.1;
Pressure-Temperature Rating: ASME B 16.34

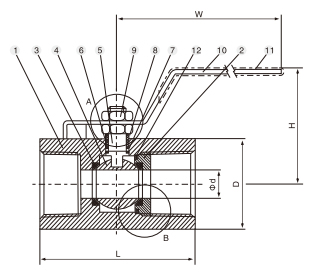

Drawing:
Dimensions:
| NPS | DN | ΦD | D | L | H | W | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| 1/4 | 8 | 5.0 | 21 | 43 | 34 | 70 | 0.11 |
| 1/2 | 15 | 9.0 | 30 | 62.5 | 60 | 120 | 0.34 |
| 3/8 | 10 | 7.0 | 25 | 47 | 37 | 70 | 0.18 |
| 3/4 | 20 | 12.5 | 36 | 70 | 64 | 120 | 0.54 |
| 1 | 25 | 16.0 | 46 | 86 | 66 | 123 | 0.95 |
| 1 1/4 | 32 | 20.0 | 55 | 94 | 78 | 145 | 1.40 |
| 1 1/2 | 40 | 24.5 | 61 | 102 | 84 | 150 | 1.70 |
| 2 | 50 | 32.0 | 75 | 115 | 91 | 150 | 2.78 |
