150LB API Swing Check Valve

150LB API swing check valve is engineered to API 6D standards with a cast steel WCB body and flanged ends, automatically preventing reverse flow in pipeline systems with low pressure drop and reliable sealing. Featuring a swing-type disc design with full bore construction, this valve ensures smooth fluid passage and minimal flow resistance while providing dependable backflow protection. Available with optional counterweight, spring or lever and weight assemblies for specific operating requirements

Overview

Application : Specifically engineered for cryogenic and low-temperature service, this 150LB API swing check valve is ideal for LNG plants, cryogenic storage systems, and liquid oxygen/nitrogen/argon pipelines where temperatures can drop to -196°C. It also serves oil & gas transmission, petrochemical refineries and industrial process systems requiring reliable backflow prevention across a wide temperature range. The extended bonnet design ensures dependable sealing performance even in extreme cold operating conditions.

Material Specification:

Part Name	Material	Working Temperature
Valve nut	Carbon steel / Stainless steel	-196°C ~ 565°C
Shim	Carbon steel / Stainless steel
Rocker pin	Carbon steel / Stainless steel
Seal	CS+SS / SS / SS+STL (see body materials)
Discs	CS+SS / SS / SS+STL (see body materials)

Part Name	WCB	LCB	WC6	WC9	Applicable Medium
Inner six angle bolt	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	Water, oil, gas, nitric acid, acetic acid
Middle flange bolt nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
Shim	Spiral wound/soft iron	Spiral wound/soft iron	Spiral wound/SS304	Spiral wound/SS304
Bracket	A216 Gr WCB	A352 Gr LCB	A217 Gr WC6	A217 Gr WC9
Rocker arm	A216 Gr WCB	A352 Gr LCB	A217 Gr WC6	A217 Gr WC9
Valve cover	A216 Gr WCB	A352 Gr LCB	A217 Gr WC6	A217 Gr WC9
Body	A216 Gr WCB	A352 Gr LCB	A217 Gr WC6	A217 Gr WC9

Performance Specification:

Pressure Rating PN (MPa)

Strength Test

Water Seal Test

Air Tight Test

MPa

Lbf/in²

MPa

Lbf/in²

MPa

Lbf/in²

150

3.0

430

2.2

315

0.4–0.7

60–100

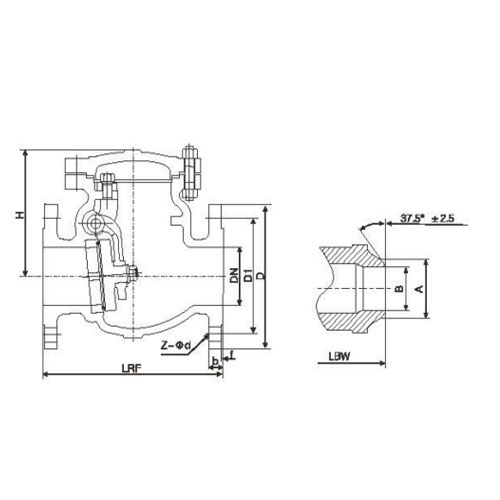

Drawing:

Dimensions（Unit:mm）:

in	DN	LRF	LBW	D	D1	b	Z-Φd	A	B	H
2	50	203	203	150	120.5	14	4-19	60	52	160
2½	65	216	216	180	139.5	16	4-19	75	63	180
3	80	241	241	190	152.5	17.5	4-19	91	78	190
4	100	292	292	230	190.5	22	8-19	117	102	205
5	125	330	330	255	216	22	8-22	144	128	230
6	150	356	356	280	241.5	24	8-22	172	154	258
8	200	495	495	345	298.5	27	8-22	223	203	295
10	250	622	622	405	362	28.6	12-25	278	255	355
12	300	699	699	485	432	30	12-25	329	305	395
14	350	787	787	535	476	33.4	12-29	362	337	445
16	400	864	864	595	540	35	16-29	413	387	490
18	450	978	978	635	578	38	16-32	464	438	520
20	500	978	978	700	635	41	20-32	516	489	545
24	600	1295	1295	815	749.5	46	20-35	619	591	880
