150lb Angel Type Storm Valve
Our 150lb angle type storm valve combines the zero-leakage performance of a bellows seal with a 90° angle body configuration, providing an efficient solution for piping layouts that require directional changes. The angle design eliminates the need for a separate 90° elbow, reducing installation cost, minimizing potential leak points, and saving valuable space in compact piping arrangements.
Overview
Application: 150lb angle type strom valves are specifically designed for piping systems where flow direction changes are required and zero external leakage is essential. Their unique configuration combines the function of a 90° elbow with the sealing performance of a bellows-sealed globe valve.
Material Specification:
NO. | Name | Materials |
1 | Hand Wheel | A 126 CLB |
2 | Stem | B62 |
3 | Gland | B62 |
4 | Packing | PTFE |
5 | Shank | B62 |
6 | Disc | Rubber |
7 | Weight | LEAD |
8 | Cover | B62/WCB |
9 | Seat | B62 |
10 | Body | B62/WCB |
Technical Specification:
Design and manufacture: MSS-SP-80
Face to face: JIS B2002
Flange ends:ASME B16.5
Test & Inspection:API 598
Performance Specification:
Nominal Pressure | 150LB |
Shell test | 3.0MPa |
Hydraulic seal test | 2.2MPa |
Gas seal test | 0.6MPa |
Suitable temperature | ≦80℃ |
For media | Water |

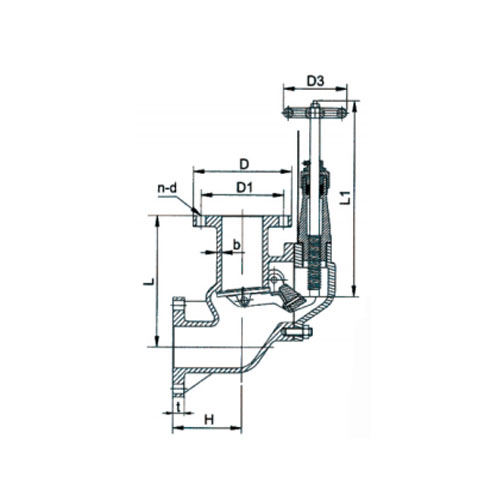

Drawing:
Dimensions:
NPS | DN | D | D1 | D3 | H | L | L1 | t | b | N - Φd |
2” | 50 | 152 | 120 | 100 | 90 | 210 | 131 | 16 | 8 | 4 - Φ19 |
2.5” | 65 | 178 | 139.5 | 100 | 110 | 240 | 141 | 18 | 9 | 4 - Φ19 |
3” | 80 | 190 | 152.5 | 160 | 120 | 260 | 155 | 19 | 9 | 4 - Φ19 |
4” | 100 | 229 | 190.5 | 160 | 130 | 280 | 171 | 24 | 10 | 8 - Φ19 |
5” | 125 | 254 | 216 | 160 | 150 | 330 | 195 | 24 | 11 | 8 - Φ22 |
6” | 150 | 279 | 241.5 | 160 | 165 | 260 | 212 | 26 | 12 | 8 - Φ22 |
8” | 200 | 343 | 298.5 | 160 | 190 | 430 | 212 | 29 | 13 | 8 - Φ22 |
