10K Bronze Fuel Oil Tank Emergency Shut-Off Valve | High-Pressure Corrosion-Resistant Marine Safety Valve

10K Fuel Oil Tank Emergency Shut-Off Valves

Our 10K bronze fuel oil tank emergency shut-off valve is engineered for high-pressure marine fuel oil applications with a heavy-duty bronze body and reinforced bonnet, featuring a robust quick-closing mechanism that delivers rapid and reliable shut-off at operating pressures up to 1.0MPa while maintaining superior corrosion resistance in harsh marine environments. Built with thicker bronze wall construction, stronger internal components and enhanced pressure containment compared to 5K class valves, this high-pressure bronze emergency valve provides dependable isolation performance and extended service life in demanding high-pressure fuel systems requiring both corrosion resistance and higher pressure capability.

Overview

Application: Primarily specified for high-pressure fuel oil systems, main engine fuel lines, fuel transfer pump discharge circuits and pressurized fuel tanks on commercial vessels, cargo ships, tankers and offshore platforms where 5K class bronze emergency valves cannot meet system pressure requirements and reliable high-pressure shut-off with corrosion protection is critical for safety. Also widely used in shipbuilding projects and vessel maintenance in coastal and tropical marine environments where both SOLAS classification society compliance and long-term corrosion resistance are required for high-pressure fuel handling systems in harsh saltwater conditions.

Material Specification:

For size 25A and 40A

Part Name	Material	Code
1A-Body	Bronze	BC6
3-Disc	Bronze	BC6
4-Stem	Brass	C3371BD

For size 50A and Higher

Part Name	Material	Material Code
1B-Body	Cast Steel	SC49
2-Seat	Stainless Steel	SCS2
3-Disc	Stainless Steel	SCS2
4-Stem	Stainless Steel	SUS403

Technical Specifications:

Nominal Pressure
Hydraulic Inspection	Body	7 kg
	Seat	2 kg

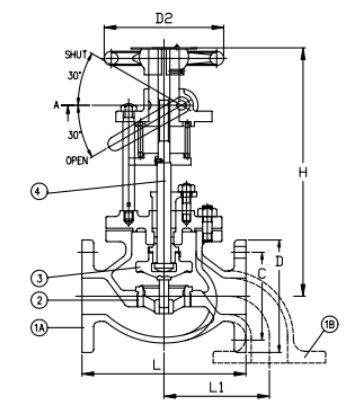

Drawing:

Dimensions:

Size	L	L₁	L₂	D	C	No.	h	t	H	D₁
25	130	80	65	125	90	4	19	14	265	120
40	170	85	80	140	105	4	19	16	310	140
50	220	125	90	155	120	4	19	16	335	160
65	270	155	100	175	140	4	19	18	395	180
80	300	165	120	185	150	8	19	18	420	180
100	350	200	130	210	175	8	19	18	510	224
125	420	250	160	250	210	8	19	20	440	250
150	490	300	180	280	240	8	19	22	520	320
