1000 WOG 1PC CAST BALL VALVES
1000 WOG one-piece cast ball valve features a single-piece cast body construction that eliminates potential leak paths and provides a compact, cost-effective solution for general service applications. Rated at 1000 psi WOG (Water, Oil, Gas), this valve delivers reliable quarter-turn shut-off performance in a space-saving design, making it ideal for a wide range of industrial and commercial piping systems.
Overview
Application: 1000 WOG one-piece cast ball valves are widely used in general-purpose piping systems where compact size, reliable shut-off, and cost efficiency are priorities. Their single-piece body design makes them particularly well-suited for installations where leak-tight integrity and space savings are important.
Material Specification:
NO | Part | Material | |||
1 | Body | WCB | CF8 | CF8M | CF3 |
2 | Sell ring | PTFE/RP TFE/PPL | |||
3 | Gasket | PTFE/RP TFE/PPL | |||
4 | Packing | PTFE/Flexible graphite | |||
5 | Bushing | 304 | 316 | 304L | |
6 | Hand Shank | 304 | |||
7 | Nut | 8 | |||
8 | Stem | F6a | 304 | 17-4PH | 304L |
9 | Ball | 420 | 304 | 316 | 304L |
10 | Washer | 304 | 304 | 316 | 304L |
11 | Bonnet | 304 | 304 | 316 | 304L |
Technical Specification:
Design and manufacture: GB/T12237
NPT end: ASME B1.20.1
G end: GB/T12716
RC end: GB/T7306.2
Inspection & testing: GB/T13927
Design Requirement:
Locking handle
Blow-out proof stem
Easy operation
Fire safe design
Anti-static devices for ball-stem-body
Connect end: NPT, SW, BW (Body lengthening)
Valve Performance:
Be useful for fresh water, waste water, water, gas, steam, foodstuff, drug, chemicals, petroleum, acid, alkali, etc.

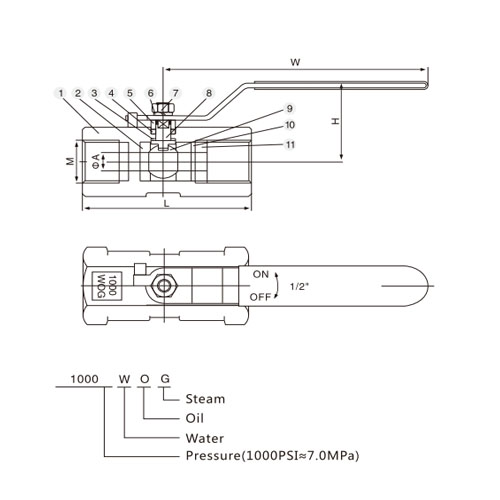

Drawing:
Dimensions:
NPS | DN | ΦA | L | H | W | M |
1/4" | 6 | 4.5 | 40 | 35 | 64 | NPT BSP G RC |
3/8" | 10 | 6 | 45 | 37 | 70 | |
1/2" | 15 | 8.5 | 55 | 43.5 | 90 | |
3/4" | 20 | 12 | 60 | 47 | 90 | |
1" | 25 | 16 | 72 | 50 | 103 | |
1 1/4" | 32 | 20 | 78 | 57 | 103 | |
1 1/2" | 40 | 24 | 83 | 69 | 127 | |
2" | 50 | 32 | 100 | 74.5 | 127 |
